• Automatically identify testing modes for AC voltage/DC voltage/resistance/continuity
• Non-connection AC voltage detection, and judge the strength through light and buzzer
• Self-calibration when power on to ensure accuracy
• LIVE firewire recognition
• Display backlight
• True RMS
• Data hold
• Low battery display
• Automatic power off
• Safety rating: CAT III 600V

Specification:

Function	Range	Resolution	Accuracy
DC Voltage	60mV/600mV/6V/60V/600V	0.01mV/0.1mV/0.001V/0.01V/0.1V	±(0.5%+3)
AC Voltage	60mV/600mV/6V/60V/600V	0.01mV/0.1mV/0.001V/0.01V/0.1V	±(1.0%+3)
DC Current	6000µA/60mA/600mA	1µA/0.01mA/0.1mA	±(1.2%+5)
AC Voltage	6000µA/60mA/600mA	1µA/0.01mA/0.1mA	±(1.5%+5)
Resistance	600/6k/60k/600k /6k/60k/600k	0.1/0.001k/0.01k/0.1k	±(1.0%+5)
	6M/60M	0.001M/0.01M	±(1.5%+3)
Capacitance	6nF/60nF/600nF/6µF/60µF/600µF	0.001nF/0.01nF/0.1nF/0.001µF/0.01µF/0.1µF	±(4.0%+5)
	6mF/60mF	0.001mF/0.01mF	±(5.0%+5)
Frequency	10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz	0.001Hz/0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz	±(1.0%+5)
	10MHz	0.001MHz	±(3.0%+5)
Duty	1~99%	0.1%	±(3.0%+5)
Diode measurement	open circuit voltage 2.0V



Standard Delivery:

Main unit	1 pc

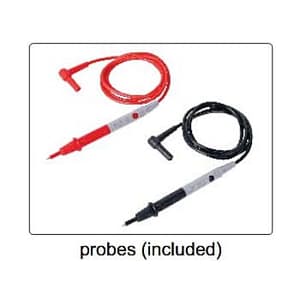

Probe	2 pcs
Battery (CR2032)	4 pcs
