Insize 640µm Range Roughness Tester, ISR-T120
Roll over image to zoom zoom_in
- Weight: 400 Grams
- Product Type: Roughness Tester
- Range (X axis): 17.5 mm
- Range (Z axis): 640µm (-320 ~ 320µm)
- Accuracy: +/-10%
- Resolution: 0.001µm
- Probe (Stylus Radius/Angle): 5µm/90°
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹167490.38 (Incl. of all taxes)
₹141941+ ₹25549.38 GST (18%)
MRP ₹218371
SAVE 35%
3 Business Days
1 Set
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights

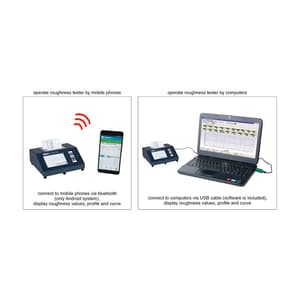

- Roughness tester can be operated by mobile phones (only Android system) or computers
- Data can be sent to Excel by connecting to computers via bluetooth or SPC cable
- Built-in printer can print measurement results and graphics
- 22 roughness parameters
- Meet ISO, DIN, ANSI, JIS standards

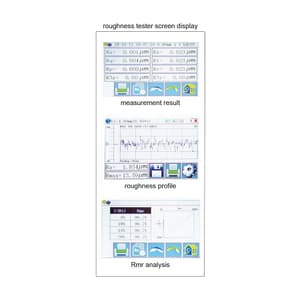

- Display roughness values, profile and curve
- Memory of maximum 100 data and waveform
- Built-in lithium battery, working time more than 50 hours
- Automatic power off
- Parameters: Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rc, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr, Mr2, Ry, Rmax
Standard Delivery:
| Main unit | 1 pc |
| Standard probe | 1 pc |
| Calibration block and support | 1 pc of each |
| Magnetic Stand Adapter | 1 pc |
| Adjustable Stand | 1 pc |
| Touch Pen | 1 pc |
| Software and USB Cable | 1 pc |
| AC/DC Adapter | 1 pc |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.DI.RO.00005 |
|---|---|
| Product Type | Roughness Tester |
| Model No | ISR-T120 |
| Range (X axis) | 17.5 mm |
| Range (Z axis) | 640µm (-320 ~ 320µm) |
| Accuracy | +/-10% |
| Resolution | 0.001µm |
| Probe (Type) | Inductive |
| Probe (Stylus Radius/Angle) | 5µm/90° |
| Probe (Style Material) | Diamond |
| Measuring Force | 4mN |
| Measuring Unit | µm/µin |
| Cut Off | 0.25/0.8/2.5 mm |
| Number of Cut-offs | 1 - 5 |
| Traverse Speed | 0.135mm/s, 0.5mm/s, 1mm/s |
| Memory | 100 Measurement Results |
| Output | Bluetooth & USB |
| Power | Buit-in Rechargeable Battery |

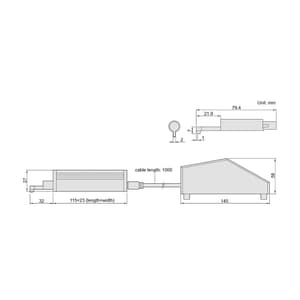

| Dimensions (L X W X H) | 158 x 64 x 52 mm |
