• 2 measuring method, contact and non-contact
• Can measure rotary speed and line speed
• Automatically save the maximum value, minimum value and the last value, 500 data can be stored during continuous measurement
• Automatic power off



Measuring method		Non-Contact	Contact
Measuring range	Rotary speed	2.5-99999RPM	0.5-19999RPM
	Line speed	-	0.05-500m/min
Resolution	Rotary speed	0.1RPM (range 2.5-999.9RPM) 1RPM (range 1000~99999RPM)	0.1RPM (range 0.5-999.9RPM) 1RPM (range 1000~19999RPM)
	Line speed	-	0.01m/min (range 0.05-99.99m/min) 0.1m/min (range 100~500m/min)
Accuracy	Rotary speed	+(0.05%n+1d)RPM n is rotary speed, d is resolution	+(0.4%n+1d)RPM (n<300RPM) +(0.05%n+1d)RPM (n≥300RPM) n is rotary speed, d is resolution
	Line speed	-	+(1%+1d)m/min d is resolution

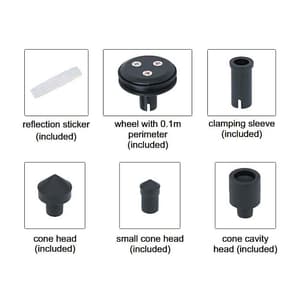

Standard Delivery:

Main unit	1 pc
Reflection sticker	3 pcs
Wheel with 0.1m perimeter	1 pc
Clamping sleeve	1 pc
Cone head	1 pc
Small cone head	1 pc
Cone cavity head	1 pc
Battery (AA)	3 pcs
