Widely used in electronic production enterprises clean room testing, filter leakage detection, monitor biological safety, HVAC systems, computer rooms, food packaging environments, pharmaceutical and medical device production environments, hospital clean operating rooms, automotive spraying environments, etc.

Features:

• Using semiconductor laser sensor
• Measures the size and number of dust particles per unit volume of air in clean environments and can be set to alarm at different purification levels
• Simultaneous counting of six counting channels (0.3um, 0.5um, 1um, 3um, 5um, 10um), and can be stored according to the room number respectively, according to the calculation of the upper confidence limit of 95% for each room (UCL value)
• It can be connected to a PC data acquisition system for remote control
• UCL Setting: Set from 2 to 9 (Sampling points (A)), Set from 2 to 9 (Sampling times per point (L)), Set from 0 to 999 (location)
• Alarm Setting: the instrument is equipped with a clean room level alarm function, which will alarm when it exceeds the standard of class 100, 1000, 10000, 100000, 300000, 1000000, and will also alarm when the battery voltage is too low
• Data Storage: store 1000 sets of data (including particle size, data, environmental data, time sample volume, data location), no data loss after power failure
• Environmental Requirement: temperature: 0~40°C, relative humidity: 20~90%, no condensation, the instrument should be used in a non-corrosive air environment

Technical Data:

Sampling Flow	Range	2.83 L/min (0.1ft³)
	Accuracy	±5%
Particle	Particle Diameter Passage	0.3µm, 0.5µm, 1µm, 3µm, 5µm, 10µm, simultaneous counting of six particle diameters
	Repeatability	< 10%FS
	Error of Particle Sizes	±30% (0.5µm, 5µm)
	Accuracy	±30%FS (0.5µm)

Package Content:

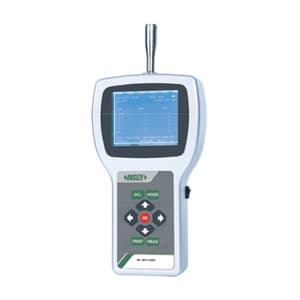

• 1x Particle Counter
• 1x Isokinetic sampling port
• 1x High Efficiency Filter (0811-CA01-F)
• 1 Set x Communication Cable
• 1 x Adapter
• 1 x USB Disk
