• 74 roughness parameters according to ISO-4287, ISO-13565, DIN-4768, VDA-2007, JIS-B0671, JlS-B0601, ASME-B46.1, ISO-12085, JIS-B0631
• Automatic probe leveling
• Can measure grit and shot blasting
• Traverse length up to 59mm

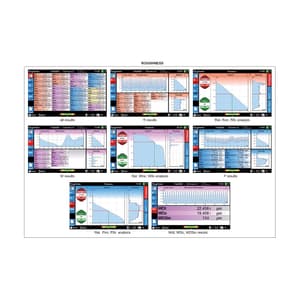

• Color touch screen, display roughness values, profile and curves
• Allow to connect U disk to save measurement results in Excel, PDF, DXF and image
• Connect ordinary printer or bluetooth printer to print measurement results and graphic curves
• Memory of maximum 4000 in roughness or 1000 in profile
• Can set tolerance

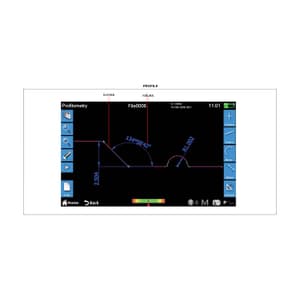

Technical Data for Profile Measurement:

X-axis measuring range	59 mm
X-axis resolution	1µm
X-axis measuring accuracy	±(3.5+L/10)µm, L is measuring length in mm
Z-axis measuring range	3 mm
Z-axis resolution	1µm
Z-axis measuring accuracy	±(4+H)µm,H is measuring height in mm
Traverse speed	10 mm/s
Probe radius	20µm
Traceable angle	80° (upward), 70° (downward)

Parameters

Specification of Probes:

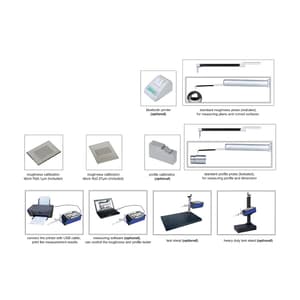

Standard Delivery:

Main unit	1 pc
Roughness standard probe	1 pc
Profile standard probe	1 pc
Roughness calibration block (Ra0.1µm & Ra2.97µm)	2 pc
Power Adapter	1 pc

Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
