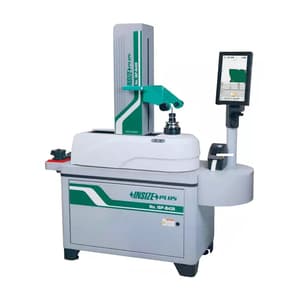

Insize-Plus 420 mm (Dia.) x 420 mm (Height) Tool Presetter, ISP-B420
Roll over image to zoom zoom_in
- Weight: 274 Kg
- Product Type: Presetter
- Max. Tool Diameter (X axis): 420 mm
- Max. tool Height (Z axis): 420 mm
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2366431 (Incl. of all taxes)
₹2005450+ ₹360981 GST (18%)
MRP ₹2506813
SAVE 20%
15 Business Days
1 Set
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Windows 10 operation system

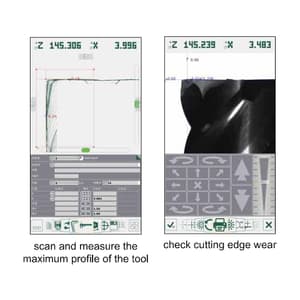

- Check, preset and measure cutting tools
- Telecentric lens CCD camera system
- Use Bosch or Festo pneumatic components, THK guideways and HEIDENHAIN scales

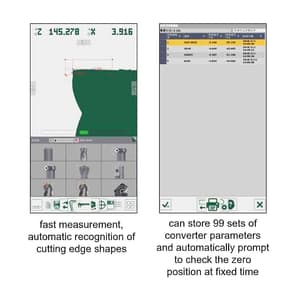

- Built-in 113 cutting edge shapes, automatic recognition
- Measuring modes: absolute, relative and incremental measurement
- Measuring radius, angle, concentricity, axial runout, etc
- Storage of 3000 tool parameters

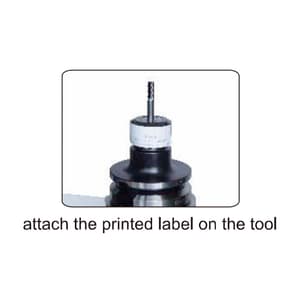

- View, print and export measurement results
Standard Delivery:
| Main unit | 1 Pc |
| Controller | 1 Pc |
| Bracket for tools and converters | 1 Pc |
| ISO/SK/BT50 spindle (including 360° clamping and 4x90° clamping) | 1 Pc |
| Printer | 1 Pc |
| Printer Label Paper | 1 Pc |
Once the Order is Placed, it can not be cancelled & Delivery time will be as per Stock Availiblity & it may take upto 25 days. Training & Installation will be charged extra if required.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.PR.00018 |
|---|---|
| Product Type | Presetter |
| Model No | ISP-B420 |
| Max. Tool Diameter (X axis) | 420 mm |
| Max. tool Height (Z axis) | 420 mm |
| Range of Snape Gauge (X axis) | 100 mm |
| Repeatability | 2µm (X & Z axis) |
| Resolution of X/Y axis | 1µm |
| Camera | Color CCD |
| Image Processing Accuracy | 1µm |
| Magnification | 20X |
| View Field | 7 x 7 mm |
| Illumination | Adjustable LED Light |
| Spindle | ISO/SK/BT50 (Concentricity 2µm) |
| Data Output | USB, RS232 |
| Working Air Pressure | 0.6 - 0.8MPa |
| Environmental Requirement | 5 - 35°C (Temperature) / 10% - 95% (Relative Humidity) |
| Power Supply | 110/220V, 50/60Hz |
| Dimensions (L x W x H) | 1900 x 750 x 1750 mm |
