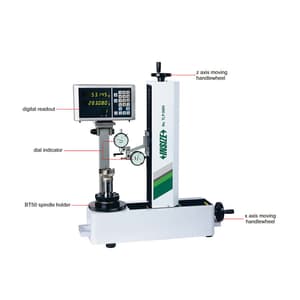

Insize Tool Presetter (Base Type), TLP-300H
Roll over the image to zoom in
Key Features
- Product Type: Presetter
- Weight: 68 kg
- Repeatability: 0.005 mm
- Spindle holder: BT50
ToolBuy Benefits
- Secure Payments
- Order Tracking (opens in a new tab)
₹8,07,560 (Incl. of all taxes)
₹6,84,373 + ₹1,23,187 GST (18%)
Out of Stock
3 Business Days
1
90318000
Download Product LeafletNot available
Download Insize CatalogueNot available
Download Insize CatalogueNot available
Product Information
Highlights
- Absolute linear scales, Zero setting is not needed after power on and off.
Standard Delivery:
| Main unit | 1 Pc |
| BT50 spindle holder | 1 Pc |

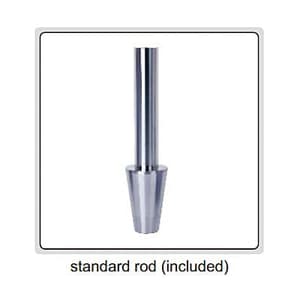

| Standard rod | 1 Pc |
| Dial indicator | 2 Pcs |
| Wrench | 1 Set |
| Anti-dust cover | 1 Pc |
Optional Accessory:

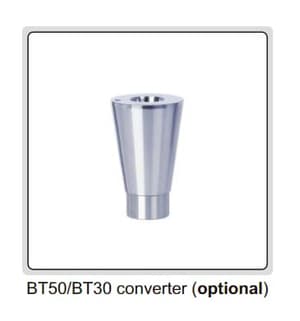

| BT50/BT30 converter | TLP-300H-C1 |
| BT50/BT40 converter | TLP-300H-C2 |
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| Maximum tool diameter (X-axis) | 300 mm Dia |
|---|---|
| Height measuring range | 60~300 mm |
| Repeatability | 0.005 mm |
| Measuring accuracy | 0.02 mm |
| Linear scale resolution | 0.005 mm |
| Dial indicator graduation | 0.01 mm |
| Spindle holder | BT50 |
| Power supply | 110/220v, 50/60HZ |
| Dimensions (L x W x H) | 600 x 365 x 690 mm |
