These are straight flute general purpose taps which can be used for both machine or hand tapping. They are generally the most economical tool for use on production runs, but are best on materials that produce chips, or where the swarf breaks readily. Where deep holes are to be tapped, in materials which produce stringy swarf, other types of taps may be needed, especially for coarse threads.

Specification Conform to:

• IS: 6175 Part 3: 2002
• ISO 529: 1975
• BS 949 Part 1: 1992

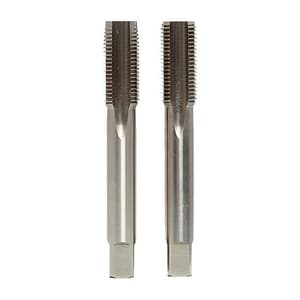

Hand taps are supplied in sets of Two:

BOTTOM TAPS have a chamfer (lead) of 1–2 threads, the angle of the lead being around 18 degrees per side. They are used to produce threads close to the bottom of blind holes.

TAPER TAPS have a lead of 7-10 threads at 5 degrees per side. The taper lead distributes the cutting force over a large area, and the taper shape helps the thread to start. They can therefore be used to start a thread prior to use of second or bottom leads, or for through holes.

Recommended Tap Drill Sizes

Nominal Diameter	Pitch	Drill Size
2	0.4	1.6
2.2	0.45	1.75
2.3	0.4	1.9
2.5	0.45	2.05
2.6	0.45	2.1
3	0.5	2.5
3.5	0.6	2.9
4	0.7	3.3
4.5	0.75	3.7
5	0.8	4.2
6	1	5
7	1	6
8	1.25	6.8
9	1.25	7.8
10	1.5	8.5
11	1.5	9.5
12	1.75	10.2
14	2	12
16	2	14
18	2.51	15.5
20	2.5	17.5
22	2.5	19.5
24	3	21
27	3	24
30	3.5	26.5
33	3.5	29.5
36	4	32
39	4	35
42	4.5	37.5
45	4.5	40.5
48	48	43
52	5	47
56	5.5	50.5
60	5.5	54.5
64	6	58
68	6	62
