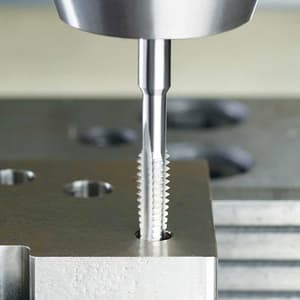

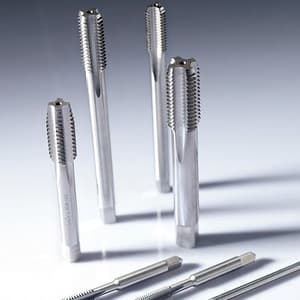

JK Taps are straight flute general purpose taps, which can be used for both, machine or hand tapping. These taps are most economical to use on production runs, but are best on materials that produce chips or where the swarf breaks readily. Hand Taps can be supplied in sets of three Taper, Second & Bottom non-serial with thread.

Please note that :

• These Taps are Supplied in Set of Three - Taper, Second & Bottoming in non Serial form with thread Tolerance Class 2 (Zone 3) unless otherwise specified.
• For BSP : Recommended Drill Taps Sizes above are as per BS 949 Class 2

Features:

• Manufactured with premium quality HSS Steel
• Improved cost per component
• Taps are heat treated with advanced heat treatment technology giving it consistent quality
• Taps are produced on advance CNC machines which deliver accurate and consistent geometry.

Tap Drill Size:

Tap Size (Nominal Dia x Pitch)	Drill Dia (mm)
1/16" x 28	0.261 (G)
1/8"x 28	11/32
1/8"x19	29/64
3/8"x19	19/32
1/2"x14	3/4
5/8"x14	53/64
3/4"x14	31/32
7/8"x14	1-7/64
1"x11	1-13/64
1-1/4"x11	1-35/64
1-1/2"x11	1-25/32
1-3/4"x11	2
2"x11	2-1/4

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
