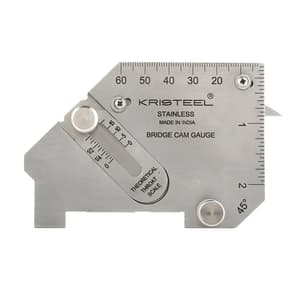

Kristeel Shinwa is a leading global manufacturer of measuring instruments and tools, Photochemical machining, SMT Stencils, Textile Machinery and Real estate. This rugged gauge is fabricated in stainless steel and used to measure the important Dimensions of weld preparations & of completed Butt and fillet welds. It is intended for general fabrication work in the shop or on-site.

It rapidly measures Angle preparation (0° to 60°), Excess weld metal, Fillet weld leg length, Throat length, Misalignment & hole sizes for butt weld, butt-weld reinforcement, and General Linear Measurement up to 60mm or 2 inches- Scales are graduated in metric units & supplied in a preventive case with instruction leaflet.

Features:

•  Angle of preparation, 0° to 60°
• Excess weld metal (capping size)
• Depth of undercut
• Depth of pitting
• Fillet weld throat size
• Fillet weld length
• Misalignment (High-low)

Graduations:

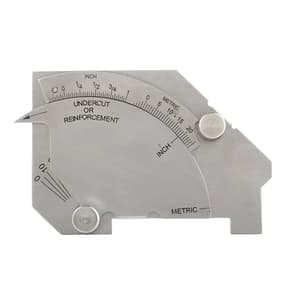

• Top Side: Metric Size Marked
• Back Side: Angular Size Marked


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
