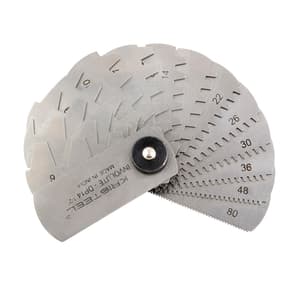

Kristeel 6 - 80 DP / 15 Leaves Gear Tooth Pitch Gauge (DP 14-1/2°), GTPG 2722
Roll over image to zoom zoom_in
- Product Type: Other Engineering Gauges
- Type of Product: Gear Tooth Pitch Gauge
- Range: 6 - 80 DP
- Pressure Angle: DP 14-1/2°
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹2297.46 (Incl. of all taxes)
₹1947+ ₹350.46 GST (18%)
MRP ₹2782
SAVE 30%
3 Business Days
1 Pcs
90173010
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
This gauge is made of hardened & tempered stainless steel material 0.5 mm thick. This is a very handy tool used to measure the Gear Diametrical Pitch and metric module pitch for 14.5° & 20° pressure angles.
This gauge is duly fine-edge profiled, Numbered pitch sizes are mentioned on each blade. it is very useful to gauge all gear manufacturers for inspection purposes. it is packed in a plastic box with a gear data sheet (DP, CP, Tooth Thickness Data) provided for instant reference.
Features:
- Graduation: Top Side: Size Marked
- Least Count: 1 TPI
- Standard: EEC-II
- Type: Rigid
- Finish: Polish
- Material: Stainless Steel
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.DI.OT.00095 |
|---|---|
| Product Type | Other Engineering Gauges |
| Model No | GTPG2722 |
| Type of Product | Gear Tooth Pitch Gauge |
| Range | 6 - 80 DP |
| Pressure Angle | DP 14-1/2° |
| No. of Leaves | 15 |
| Length (mm) | 50 mm |
| Width (mm) | 20 mm |
| Thickness (mm) | 0.8 mm |
| Accuracy (±mm) | 0.2 ±mm |
