Abundant Data Logging and Accurate Trend Analysis are available backed by Internal SD Card stored up to 7.5 million data in Text or Graphic mode.

Features:

• Capacity Measurement
• Analyzer
• Powerful Management Program
• Clamp adaptor for DC current or AC current measurements.
• % SOC, Efficiency, Ah, Wh Safety: Certified EMS. LVD 61010-1 CAT II 300V DC

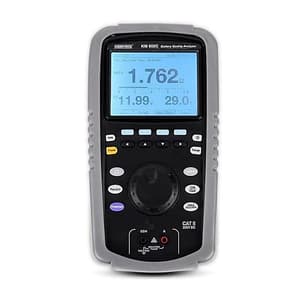

• The Battery Quality Analyzer is designed for internal resistance, open-circuit voltage, and terminal temperature of secondary batteries, including Lead Storage Cells (Lead -Acid batteries), nickel-cadmium batteries, lithium-ion batteries and nickel-metal hydride batteries.
• AC four-terminal method to measure the internal resistance by eliminating lead resistance and contact resistance to get accurate results.
• Multiple display to show the internal resistance, voltage and temperature or voltage, current and temperature of the battery simultaneously.
• It has 99 sets of composite comparator functions, which can be set at resistance and voltage values to get the reliable detection of battery deterioration.
• Pin-type lead, which can easily contact the battery electrodes supplied as standard to get the more accurate 4-terminal measurement.

Technical Data:

Impedance Measurement
Range	4mΩ ~ 4Ω (4 Range)/ 1uΩ Resolution
Accuracy	±0.8%rdg ±10dgts
Battery Range	max 100V, 6000Ah
Voltage Measurement: Differential Input
Range	4V, 40V & 300V (3 range)
Accuracy	±0.5%rdg ±5dgts
DC Current(Float Current) Measurement CT
Range	40A / 400A
Accuracy	±1%rdg ±5dgts (CT Accuracy added)
AC Current (Ripple Current) Measurement
Range	40A / 400A
Accuracy	±1%rdg ±5dgts (CT Accuracy added)
Temperature
Range	-10°C ~ 100°C / 14°F ~ 212°F
Accuracy	±2°C ±3.6°F
Battery Temperature Measurement	Internal Sensor
Guaranteed Accuracy	23°C +/-5°C, Non-condensing

Package Content:

• 4 Terminal Battery Test Lead set (Pin type)
• Ni-MH Rechargeable Battery Pack (installed)
• USB PC Interface Package (Program and User Manual in CD. USB Cable)
• Hardcopy User Manual
• Ohm Adjustment Bar
• ADC Power Adapter and Internal Charger
• Carrying Bag with Shoulder Strip
