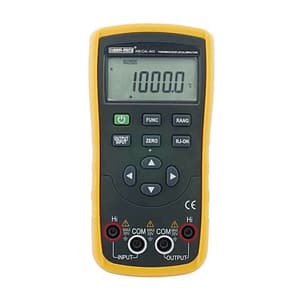

This is a Thermocouple “Source” & ”Sink” Calibrator. It gives an output of DC Volts & output for R, S, B, E, K, J, T & N Thermocouples. It measures DC Voltage & also R, S, B, E, K, J, T & N Thermocouples. It has 5 5-digit LCD display & extremely high accuracy of 0.05%.

Technical Data:

Output Function

Output	Range	Output Range	Resolution	Accuracy	Remarks
DC Voltage	100mV	-10.00 ~ 110.00mV	0.01mV	±0.05% ± 30µV	The max. Output current ± 2mA
	1V	-0.1000 ~ 1.1000V	0.1mV	±0.05% ± 30mV
Thermocouple	R	-40 ~ 1760°C	1°C	±0.05% + 3(Less than or equals to 100°C) ±0.05% + 2(more than 100°C)	Employs ITS-90 temperature standard The accuracy does not include the error of interior temperature compensation sensor The accuracy does not include the impact of interior thermoelectric force.
	S	-20 ~ 1760°C	1°C
RTD	B	400 ~ 1800°C	1°C	±0.05% + 3(Less than or equals to 600°C) ±0.05% + 2(more than 600°C)
	E	-200.0 ~ 1000.0°C	0.1°C	±0.05% + 20 (Less than or equal to -100°C) ±0.05% + 10 (More than -100°C)
	K	-200.0 ~ 1370°C
	J	-200.0 ~ 1200.0°C
	T	-200.0 ~ 400.0°C
	N	-200.0 ~ 1300.0°C

Input Function

Output	Range	Output Range	Resolution	Accuracy	Remarks
DC Voltage DCmV	100mV	-10.00 ~ 110.00mV	0.01mV	±0.05% ± 3	Input Resistance: 1MΩ
Thermocouple TC	R	-40°C ~ 1760°C	1°C	±0.05% + 3 (Less than or equal to 100°C) ±0.05% + 2 (More than 100°C)	Input Resistance: 1MΩ Employs ITS-90 temperature standard The accuracy does not include the error of interior temperature compensation sensor The accuracy does not include the impact of interior thermoelectric force.
	S	-200°C ~ 1760°C
	B	400°C ~ 1800°C		±0.05% + 3(Less than or equals to 600°C) ±0.05% + 2(more than 600°C)
	E	-200.0°C ~ 1000.0°C	0.1°C	±0.05% + 20 (Less than or equal to -100°C) ±0.05% + 10 (more than -100°C)
	K	200.0°C ~ 1370°C
	J	-200.0°C ~ 1200.0°C
	T	-200.0°C ~ 400.0°C
	N	-200.0°C ~ 1300.0°C

Specification:

Display	5 Digit LCD Display
Max. Allowable Voltage	30V
Operating Temperature	0 ~ 50°C
Operating Humidity	Less Than Equal To 80% RH
Storage Temperature	Less Than Equal To -10°C ~ 55°C
Storage Humidity	Less Than Equal To 90% RH
Temperature Coefficient	0.1x(Dedicated Accuracy)%/°C (5°C ~ 18°C, 28°C ~ 40°C)
Power Consumption	About 50m/3V
Dimension (LxWxD)	180 x 90 x 47 mm

Safety:

• Complies with IEC1010 (safety standard issued by International Electrician Committee)

Package Content:

• User Manual
• Test lead CF-36 (Clips for probe)
• Holster
• Carrying case
