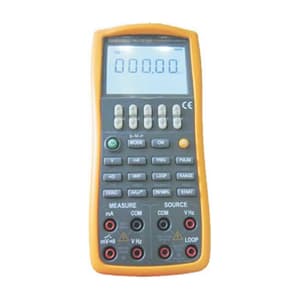

This is a source and measure type of calibrator and it gives a high accuracy of 0.02%. It has a dual display. 5-digit display for measure and 6-digit display for source & white LED for backlight.


Features:

• High Accuracy of 0.02% for measure and source.
• A dual, Liquid Crystal Display
• 5 digits display for the measure.
• White LED for backlight
• 6 digits display for source.

Technical Data:

Output Function

Function	Range	Measuring Range	Resolution	Accuracy
DC Voltage	1000mV	-100.00 ~ 1100.00mV	10µV	0.02 + 0.01
	10V	-1.0000 ~ 11.0000V	0.1mV
DC Current	20mA	0.000mA ~ 22.000mA	1µA	0.02 + 0.02
Frequency	100Hz	1.00Hz ~ 110.00Hz	0.01Hz	± 2 Count
	1KHz	0.100KHz ~ 1.100KHz	1Hz
	10KHz	1.0KHz ~ 11.0KHz	0.1KHz
Pulse	100Hz	1 ~ 100000 cycles	1 cycle	-
	1KHz
	10KHz
Loop	24V	-	-	± 10%
Remark
Function			Remark
DC Voltage			Maximum output: 2mA
			Maximum output: 5mA
DC Current			Simulator Transmiter :5-28V Power Supply outside: 1KΩ at 20mA
Frequency			Output Voltage:+1 ± 11V (zero base waveform) Amplitude accuracy: ±10%+0.5V Maximum load: >100KΩ Duty Cycle: 50%
Pulse
Loop			Maximum output current: 25mA short circuit protected.



Measuring Function

Function	Range	Measuring Range	Resolution	Accuracy
DC Voltage	200mV	-20.00 ~ 220.00mV	10µV	0.02%+0.02
	5 V	-0.5000 ~ 5.5000V	0.1mV	0.02%+0.01
	50 V	-5.000 ~ 55.000V	1mV
DC mA	50mA	-4.000 ~ 55.000mA	1µA	0.03 + 0.01
Frequency	500Hz	3Hz ~ 500.00Hz	0.01Hz	± 2 Count
	5KHz	3Hz ~ 5.0000KHz	0.1Hz
	50KHz	3Hz ~ 50.000KHz	1Hz
Continuity	< 250Ω	CLOSE / OPEN	-
Pressure	Defined by the pressure module	-	Defined by the pressure module	Defined by the pressure module
Remark
Function			Remark
DC Voltage			Input Resistance: Approximately 100MΩ
			Input Resistance: Approximately 1MΩ
DC mA			Input Resistance: 5Ω
Frequency			Input Impedance: 100KΩ at least Sensitivity: 3V p-p minimum Duty Cycle: 50%
Continuity			Open Circuit Voltage: About 2.5V
Pressure			For more detail, refer the pressure module about APM.



Package Content:

• V/mA Process Calibrator
• Test leads
• Fuse
• User’s Manual
• Carrying Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
