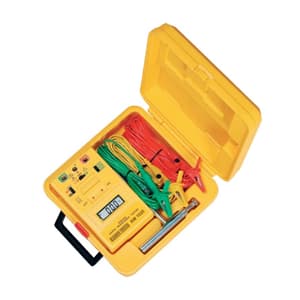

“KUSAM-MECO” Digital Earth Resistance Tester is a very versatile & handy instrument for checking Earth Resistance. It consists of the indicator & set of 3 spikes (stake) and connecting wires. Earth Resistance is measured by putting the spikes in the earth at distance of 5-10m (as shown below) & switching ON the instrument indicates the Earth Resistance directly in ohms.

Features:

• Low 2mA measuring current permits earth resistance to be tested without tripping earth leakage current circuit breakers in the circuit.
• Capable of measuring earth voltage(Vac).
• Auto power off function. The timer operates automatically for about three to five minutes after the ”PUSH BUTTON SWITCH” and “Timer ON BUTTON” are pressed together This will keep the test “ON” for about three to five Minutes. Then auto power off
• Battery operated
• Data Hold function
• Small and lightweight
• IEC 1010 CAT III 200V
• Display Back-light
• External probe
• CE-Mark approval
• Earth Resistance Resolution: 0 - 20Ω (0.01Ω); 0 - 200Ω (0.1Ω); 0 - 2000Ω (1Ω)

Accuracy:

• Earth Resistance: ±(2%rdg + 2dgts) or ± 0.1W which is greater
• Earth Voltage: ±(1%rdg + 2dgts)

Package Content:

• Digital Earth Resistance Tester
• Test leads (AL-36:red-15m, yellow-10m, green-5m)
• Auxillary earth bars (2 nos.)
• Heavy-duty case
• Instruction manual
• Batteries



 Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
