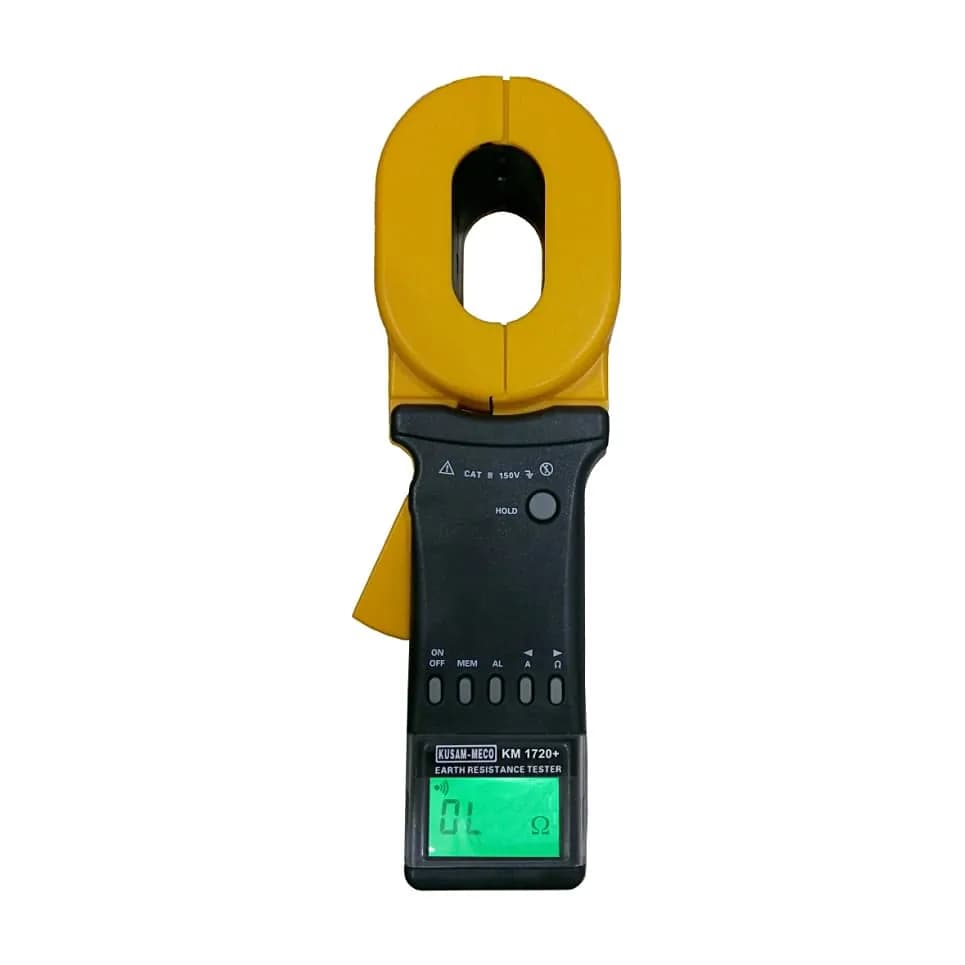

Kusam-Meco 0.01 - 1200 Ohms / 4 Digit Clamp-On Type Earth Resistance Tester With PC Interface, KM 1720

KM 1720 single-jaw type Earth Resistance Tester is widely used for earth resistance testing of the types of equipment in the field of power, telecommunication, as well as other electrical equipment. It features easy operation, high accuracy and good adaptation to the testing environment.

Features:

• Beyond the limitation of the traditional method of earth resistance testing, no assistance poles are required, with easy and convenient operation.
• No error in electrode arranging, which results in good consistency under the condition of earth resistance testing.
• Equipped with a standard testing coil which can be used to do the self-testing with accuracy.
• With a compact & sturdy structure, it can operate under the condition of harsh environments.
• Intelligent and automatic measurement, which can guarantee the safety of operation.
• High-low limits settable for Resistance & Current.
• Mode Key - Switch key of function mode (Resistance measurement / Current measurement/data access).
• Set Key - Function key combinations.

Application:

• Earthing of electric power and distribution system.
• Telecom system earthing.
• Earthing of lightning rods and oil tanks.
• CAT III network earthing
• Earthing of multi-storied building and warehouse etc.
• Earth Pit Resistance

Safety:

• EMC Directive 2004/108/EC for CE marking
• Emission: EN 61326-1:2006 Class B; EN 55011:2009/A1:2010 Group 1 Class B
• Immunity: EN 61326-1:2006; EN61000-4-2:2009; EN 61000-4-3:2006/A2:2010

Packages Content:

• Tester
• Standard Testing Coil (5.1W)
• Strong Carrying Case
• Batteries
• User Manual
