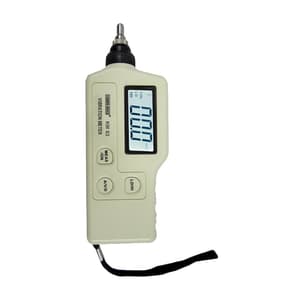

This product adopts the piezoelectric effect of artificial polarized ceramic for design. It is suitable for monitoring all kinds of vibrating mechanical facilities, especially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power, metallurgy and general aviation, etc. field.

Features:

• Visually displays measurement value & state
• Acceleration, Velocity and displacement measurement
• Different vibration frequency selection
• High-sensitivity probe for accurate measurement
• Provides long and short probe heads, each one is suitable for different situation measurements.
• Equipped with AC signal output interface
• Low power indication function
• Auto power-off
• Backlight LCD display
• Simple to use, the structure is compact and portable for carrying along with measurement.



Applications:

• To check motors pumps heavy machinery etc
• To check the bearing condition
• To check the Lubrication in machinery
• To check misalignment
• To check for looseness in motors
• To check for imbalances in machinery

Technical Specifications:

Vibration Pickup	Piezoelectric ceramic accelerometer (shear-type)
Measurement range of Acceleration	0.1~199.9 mm/s² peak
Measurement range of Velocity	0.1~199.9 mm/s rms
Measurement range of Displacement	0.001~1.999 mm p-p. Velocity and displacement range is limited by acceleration 199.9m/s²
Measurement accuracy	± (5%+2Digits)
Measurement frequency of acceleration	10Hz~1KHz (LO) / 1KHz - 15KHz (HI)
Measurement frequency of velocity	10Hz~1KHz (LO)
Measurement frequency of displacement	10Hz~1KHz (LO)

Package Content:

• Vibration Meter
• User’s manual
• Carrying Case
