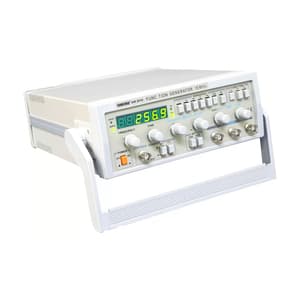

• Output waveform - Sine, Triangle, Square, ramp ±Pulse
• TL / CMOS and OUTPUT synchronous output
• Less than 1% distortion at 10Hz - 100KHz
• Less than 0. 5dB frequency response at 0. 1Hz - 100KHz
• 1Hz - 30MHz frequency counter



Technical Data:

• Output waveforms: Sine, triangle, square, positive and negative pulse, positive and negative ramp
• Output impedance: 50Ω ± 10%
• Amplitude: Not less than 50Vpp (open circuit)
• DC voltage: 0 ~ ±10V continuously adjustable
• Symmetry range: 90:10-- 10:90
• Rising edge of square: Less than 50ns

Sine Characteristic

Distortion	Less than 1% at 10H - 100KHz
Frequency response	0.1 Hz ~ 100 MHz : < ± 0.5dB / 100 KHz ~ 5 MHz ±1dB



TTL/CMOS Output

Level	Level: TTL low level less than 0.4V in pulse wave, high level less than 3.5V, CMOS low less than 0 - 14V continuously variable
Rising time	Less than 100ns



VCF Input

Output voltage	-5V ~ 0V ±10
Max. volt controlled	1000:1
Input signal	DC - 1KHz
