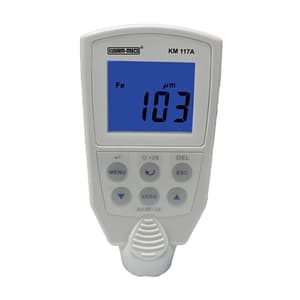

KM 117A is a portable, easy-to-use digital coating thickness gauge designed for simple one-hand operation. The meter comes with a Back-light LCD display, mm/mils user-selective and Auto Power Off (30 seconds approx.) function.

Features:

• Measures coating thickness on Ferrous base materials.
• Portability and simple one-hand operation.
• Select the online display for the one-off MAX/MIN/MAX-MIN/AVG function.
• Fast one-point calibration for frequent measuring thickness is used.
• 2-point calibration for normal use
• Auto-power off.
• LED Back-light & LCD display Reverse for easy reading.
• Data logging function capacity up to 255 samples.
• Warning beeper triggers by Hi/Lo limit settings.
• µm/mils user-selective.
• Inch & Metric measurement options.
• Zeroing Plate & Standard Coating Plate.
• Attached with carrying strap.
• Relative Humidity - Maximum relative humidity is 80% for temperatures up to 60ºC decreasing linearly to 75% relative humidity at 50ºC



Accuracy:

Ferrous: ±4dgts on 0 to 7.8mils ±(3%+4dgts) on 7.9mils to 39.0mils ±(5%+4dgts) on 39.1mils to 80mils ±10dgts on 0 to 199µm ±(3%+10dgts) on 200µm to 1000µm ±(5%+4dgts) on 1001µm to 1999µm

Response Time: 1 second



Package Content:

• Thickness Guage
• User Manual
• Battery
• Carrying Case
