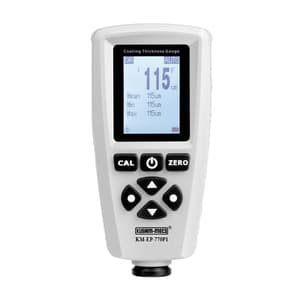

This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, & insulating coatings, e.g. pain & anodizing coatings on non-ferrous metals. This gauge is designed for non-destructive, fast & precise coating thickness measurement.

The principal applications lie in the field of corrosion protection. It is ideal for manufacturers & their customers, for offices & specialist advisers, for paint shops & electroplaters, for the chemical, automobile, shipbuilding & aircraft industries & for heavy engineering. It is suitable for laboratory, workshop & outdoor use.

Features:

• 128 * 128 dot matrix LCD, standard menu operations
• Two measure mode: Single & Continuous
• Two group modes: direct (DIR) & General(GEN), readings will be lost when power is off in direct mode, & not be lost in general mode. Readings can be stored for each group
• Zero-point calibration & multi-point calibration (up to 4 points ) for each group
• Users can recall, delete specified readings, or delete group readings
• Statistics display: mean, minimum, maximum & standard deviation
• Three probe modes: auto, magnetic & eddy current
• Users can set high or low-limit alarms for each group
• Power off automatically
• USB interface to data transmission
• Low battery & Error Indication
• Calibration: One-point to four-point calibration, Zero-point calibration
• Data Group: One direct group (readings not be stored in memory) & Four general groups (max. 320 readings); Note - Each group has individual statistics, alarm limit settings & calibration
• Statistics: No. of readings, mean, minimum, maximum & standard deviation
• Alarm: The user can set the high/low alarm limit, The Alarm icon is displayed on the LCD when over the limit



Package Content:

• Thickness Guage
• User Manual
• Battery
• Carrying Case

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
