• Basic functions DC voltage DCV, DC current DCI
• The maximum output accuracy is 0.05% and the output display is 5 digits.
• DCI output includes active output (internal 24V power supply) and passive output (external 24V power supply)
• mA is equipped with the percentage display mode
• Automatic waveform output includes: automatic stepping, sawtooth wave and triangular wave and (the automatic waveform operation parameters can be configured)
• Internal 24V loop power is provided.
• Auto power-off, backlight, flashlight
• LCD display with a white backlight.
• It has a LED flashlight for lighting
• User-optional large-suction magnetic sling is provided.
• Electromagnetic compatibility (EMC): EN61326-1:2006
• Performance criterion 2 is met, i.e. the function and performance are temporarily reduced or lost, but can be recovered by themse
• Vibration and fall: IEC 60068-2-64 : 2008, IEC 60068-2-32 : 2008
• Random, 2g, 5 - 500Hz; 1m drop test.
• CE certification.
• Instrument display and key : Segment code LCD display, white backlight, Rubber key is adopted

Technical Data:

Output function	Range	Output range	Resolution	Accuracy	Remarks
DC voltage DCV	10V	-1.000V ~ 11.000V	0.001V	0.05% + 2mV	Maximum output current : 5mA
DC current DCI	30mA	0.000mA ~ 30.000mA	0.001mA	0.05% + 4µA	At 20 mA, the maximum load is 1000Ω Upon transmitter simulation, the external loop power supply is 5-28V

Package Content:

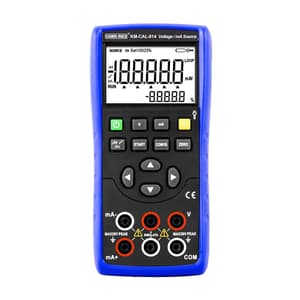

• 1x Loop Calibrator
• 1 Pair x Industrial test conductor
• 3x AA Alkaline Battery
• 1x User Manual
• 1x Fuse
