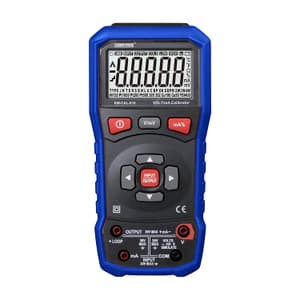

KM-CAL-816 (Volt/mA Calibrator) is a Volt/mA source and measuring tool used in tests on 0-24 Milliampere current circuit and 10V DC voltage. This calibrator can not be used for measurement and output simultaneously. The calibrator can provide current output in accordance with Milliampere value or percentage displayed. Percentage range is from -25.00% to 125.00%. 0% corresponds to 4 Milliampere and 100% to 20 Milliampere. In the current source mode, the calibrator provide current, in the analog mode ,the calibrator simulates a group of two-wire transmitters using external current loop. The maximum voltage imposed between any input terminal and the ground or between two input terminals 30V.

Features:

• Smart Multifunction Process Calibrator With Loop Power INPIT V Measurement
• DC voltage measurement
• DC voltage output
• DC measurement (milliampere)
• DC measurement (milliampere) with loop power supply
• DC output (milliampere) with loop power supply
• DC (milliampere) analog output with analog output current
• Over-Voltage Protection
• Auto Power Off in 5 minutes
• Relatively humidity: 95% (up to 30°C), 75% (up to 40°C), 45% (up to 50°C), 35% (up to 55°C)

Technical Data:

Functions	Range	Accuracy
mV Measusrement (INPUT)	0 ~ 100mV	±(0.02%rdg + 2dgts)
mV Source (OUTPUT)	0 ~ 100mV	±(0.02%rdg + 2dgts)
V Measusrement (INPUT)	0 ~ 10V	±(0.02%rdg + 2dgts)
V Source (OUTPUT)	0 ~ 10V	±(0.02%rdg + 2dgts)
mA Measure	0 ~ 24mA (-25% ~ 125%)	±(0.015%rdg + 4dgts)
mA Source	0 ~ 24mA (-25% ~ 125%)	±(0.015%rdg + 4dgts)
Loop Power	24V DC	±10%

Package Content:

• 1x Loop Calibrator
• 1 Pair x Industrial test conductor
• 3x AA Alkaline Battery
• 1x User Manual
• 1x Fuse

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
