• Frequency Range: 25 MHZ (sine wave frequency) / 15 MHz (square wave frequency)
• Frequency sweep and burst capability.
• Built-in function generator includes: sine, square, triangle, pulse, noise, harmonic.
• Arbitrary waveform generator with 2M waveform length, 16-bit resolution
• Built-in more than 160 arbitrary waveforms, including exponential rise, exponential fall, ECG, gauss, haversine, Lorentz, dual-tone, DC etc.

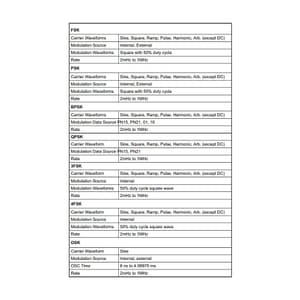

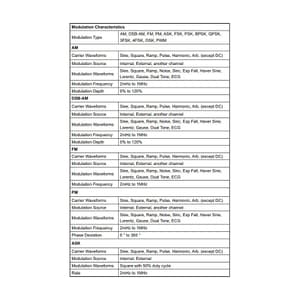

• Support AM, DSB-AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, 3FSK, 4FSK, OSK and PWM modulations.
• Built-in high-order harmonic generator (at most 16-order harmonics).
• Abundant I/O: waveform output, sync signal output, modulation input, 10MHz external time base input/output, and trigger input/output
• Waveform creation PC software included.
• USB remote interfaces.
• SCPI Compatibility for easy instrument programming

Technical Data:

Waveforms
Standard Waveforms	Sine, Square, Ramp, Pulse, Noise, Harmonic, DC
Arbitrary Waveforms	More than 160 kinds, including Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone etc
Frequency
Sine	1µHz to 25MHz
Square	1µHz to 15MHz
Pulse	1µHz to 15MHz
Ramp	1µHz to 2MHz
Harmonic	1µHz to 10MHz
Noise (-3dB)	100 MHZ bandwidth
Arbitrary	1µHz to 15MHz
Resolution	1µHz
Accuracy	±1ppm, 18 to 28°C
Square
Rise/Fall time	Typical (1kHz, 1Vpp) ≤9ns
Overshoot	Typical (100kHz, 1Vpp) ≤5%
Duty Cycle	0.001% to 99.999% Range varies with frequency
Non-symmetry	1% of the period + 4ns
Ramp
Linearity	≤1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)
Symmetry	0% to 100%
Pulse
Period	67ns to 1Ms
Pulse	≥16ns
Duty Cycle	0.001%~99.999%, Range varies with frequency
Rise/Fall time	≥9ns
Overshoot	Typical (1kHz, 1Vpp) ≤5%

Packages Content:

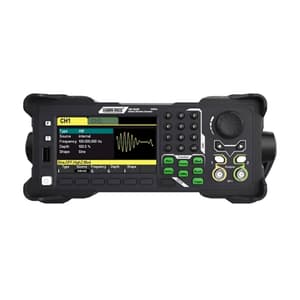

• 1x Waveform Generator
• 1x BNC to BNC Cable
• 2x Test Leads
• 1x Power Cord
• 1x USB cable
• 1x Software CD
• 1x User Manual
• Fuse (T, 0.5A, 250V, 5 x 20mm)
