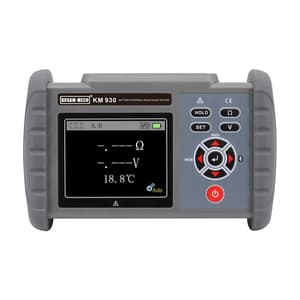

General rechargeable battery internal resistance tester Abbreviation: battery internal resistance tester. It is a measuring instrument used to measure the internal resistance, voltage and temperature of rechargeable batteries such as lead storage batteries and lithium batteries to determine the health of the battery. It can also be used as a meter to measure the ESR parameters of electrolytic capacitors (for reference only). This meter uses the AC 4-terminal test method to measure the internal resistance of the battery and can measure the correct measurement value without being affected by the contact resistance between the test wire, terminal and battery electrode.

It also has functions such as data storage, data access, alarm, and automatic shutdown. The whole machine is high-grade and beautiful, with a wide measuring range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, and strong anti-interference ability. It is an indispensable instrument for battery production, battery installation, equipment production, equipment maintenance and other scenarios.

General rechargeable battery internal resistance tester controlled by a microprocessor, the internal 16-bit ADC can accurately detect battery internal resistance, voltage and temperature. It is characterized by measuring without stopping the UPS system, using AC low-resistance measurement and noise reduction technology, without stopping the normal operation of the device under test, and measuring under the running state, which greatly shortens the test time. At the same time, it has the functions of data storage, histogram display, data upload, computer, mobile phone, tablet and other smart devices Bluetooth connection for wireless measurement and data access.

Features:

• Function - Battery internal resistance measurement, battery voltage measurement, temperature measurement.
• Measuring Range - Internal resistance measurement: 0.000mΩ ~ 3.100Ω (4 Ranges Configuration) / Voltage measurement: 0.000V~ ±71.00V (Consisting of 2 ranges) / Temperature measurement: -10.0°C ~ 60.0°C (Single Range Configuration)
• Maximum input voltage - DC 70V (between + measurement terminal and-measurement terminal), no AC input
• Measurement method - Internal resistance measurement: 1KHz AC 4-terminal test method, Open-circuit terminal voltage 3V max / Measuring current: 2.0mA ~ 200mA (different measuring currents in different ranges) / Temperature measurement: NTC temperature sensor (10KΩ at 26°C) / A/D conversion method: successive approximation type / Display update frequency: 5 times/second
• USB interface: With a USB interface, the stored data can be uploaded to the computer, saved and printed
• Hold and store function: Manual retention and storage, automatic retention and storage
• Measurement judgment function: Pre-set PASS, WARNING, FAIL judgment thresholds
• Battery voltage: The battery level is displayed in 5 bars, reminding us to charge in time when the battery voltage is low
• Automatic shut-down: No operation when power on, it will power off automatically after about 15 minutes (can be turned off in the settings)

Technical Data:

Range & Accuracy

Resistance measurement accuracy
Range	0.000mΩ ~ 3 Ω
Maximum display	3.100 Ω
Maximum Resolution	1 uΩ
	±0.5 %
Voltage measurement accuracy
Range	0.000V ~ 70 V
Maximum display	±71.00 V
Maximum Resolution	1 mV
	±0.2 %
Temperature measurement accuracy
Range	-10.0°C ~ 60.0°C
Maximum display	60.0°C
Maximum Resolution	0.1°C
	±1.0°C

Package Content:

• Meter
• Test leads
• USB cable
• Charger
• Software CD
• Instruction Manuals
• Instruments box

Please Note that Products may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
