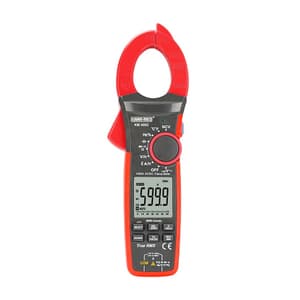

KM-4002-1000A True RMS Digital Clamp Meter are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating and are certified by CE/ETL.

KM-4002 come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The KM-4002 also features high-precision temperature measurement with 0.1 °C resolution and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.

Features & Benefits:

• True RMS
• Flashlight
• NCV (audible/visual alarm)
• Data hold/backlight
• Max/Min/ relative mode
• Diode/ Continuity test
• Inrush current
• Optional Flex Clamp (3000A) (KM-CCT3K).
• 31 Analog Bar Graph
• 6000 Counts display
• Jaw opening: 42mm
• Zero Mode Function
• LPF ACV
• LoZ ACV
• CAT lll 1000; CAT IV 600V

Technical Data:

Functions	Range	Accuracy
AC current (A) ( 40Hz~400Hz)	1000A	±(2%+5)
DC current (A)	1000A	±(2%+5)
Inrush current (A)	1000A	±(10%+10)
AC Voltage (V) (40Hz~400Hz)	1000V	±(1.2%+3)
DC Voltage (V)	1000V	±(0.5%+5)
Low pass filter (LPF ACV)	1000V	±(2%+5)
LoZ ACV	1000V	±(2%+5)
Resistance (Ω)	60MΩ	±(1%+2)
Capacitance (F)	60mF	±(4%+5)
Temperature	-40°C ~ 1000°C	±(1%+2)
	-40°C ~ 1832°F	±(1%+4)
Low voltage frequency (Hz)	10Hz ~ 1MHz	±(0.1%+3)
Duty cycle(%)	10% ~ 90%	±(2.6%+7)

Package Content:

• Test leads
• batteries
• point contact temperature probe
• Manual

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
