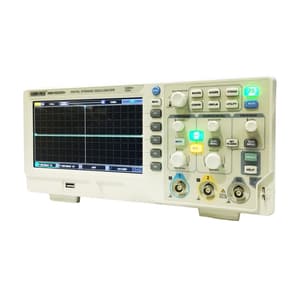

Kusam-Meco 100MHz Digital Storage Oscilloscopes, KM 2102CEX+
Roll over image to zoom zoom_in
- Weight: 2.2 Kg
- Product Type: Oscilloscopes
- Bandwidth: 100 MHz
- No. of Channels: Dual Channel
- Sampling Rate: 1 GSa/s
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹31104.8 (Incl. of all taxes)
₹26360+ ₹4744.8 GST (18%)
MRP ₹32950
SAVE 20%
3 Business Days
1 Pcs
90302000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
KM2000CEX Series is the value leader in high-performance economical oscilloscope 1GSa/s sampling rate and big screen. As it is widely loved by customers, the Series has been extended to three sub-series such as CEX/CEX+/CEX-II to meet the diversified needs of customers. The classical CEX Series is a great entry for value oscilloscope requirements with features including FFTs, record and replay, roll mode, and alternate trigger mode.
The CEX+ provides a richer trigger mode, 34 kinds of automatic parameter measurement and common mathematical operation functions, and optimizes the panel operation, which greatly improves the work efficiency and can easily cope with the measurement needs of complex signals. The CEX-II waveform capture rate is up to 20,000wfms/s, upgrade to the 8-inch screen to help observe more waveform details.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
The CEX+ provides a richer trigger mode, 34 kinds of automatic parameter measurement and common mathematical operation functions, and optimizes the panel operation, which greatly improves the work efficiency and can easily cope with the measurement needs of complex signals. The CEX-II waveform capture rate is up to 20,000wfms/s, upgrade to the 8-inch screen to help observe more waveform details.
Packages Content:
- Power Cord
- UT-D15: USB interface cable
- UT-P04: Passive Probe x 2 (1 x, 10 x Switchable,100MHz)
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.OS.00052 |
|---|---|
| Product Type | Oscilloscopes |
| Model No | KM2102CEX+ |
| Bandwidth | 100 MHz |
| No. of Channels | Dual Channel |
| Sampling Rate | 1 GSa/s |
| Memory Depth | 25 kpts |
| Waveform Capture Rate | Greater Than or Equal To 2,000 wfms/s |
| Rise Time | < 3.5ns |
| Vertical Scale (V/div) | 1 mV/div ~ 20 V/div |
| Vertical Resolution | 8 Bits |
| Time Base Scale (s/div) | 2ns/div ~ 50s/div |
| Deviation From Scope | ±10 Div (Away From Screen Center) |
| Input Impedance | 1M Ohms ± 2%, 24 ± 3pF |
| Input Coupling | DC, AC & GND |
| Timing Accuracy | Less Than or Equal To ± (50+2 × Service Life) ppm |
| Time Base Mode | Y - T, X - Y, Roll |
| Storage Methods | Setup, Wave & Bitmap |
| Trigger Types | Edge, Pluse & Alternate |
| Mathematical Operations | + / - / × / ÷ |
| Auto Measurements | 23 Types |
| Displayed Measurements | Display 5 Measurements At The Same Time |
| Frequency Counter | 6 Bits |
| Interface | USB OTG |
| Power | 100 - 240 VAC, 45 - 440 Hz |
| Display | 7 Inches TFT LCD, 800×480 |
| Dimension | 306 ×147 × 122 mm |
