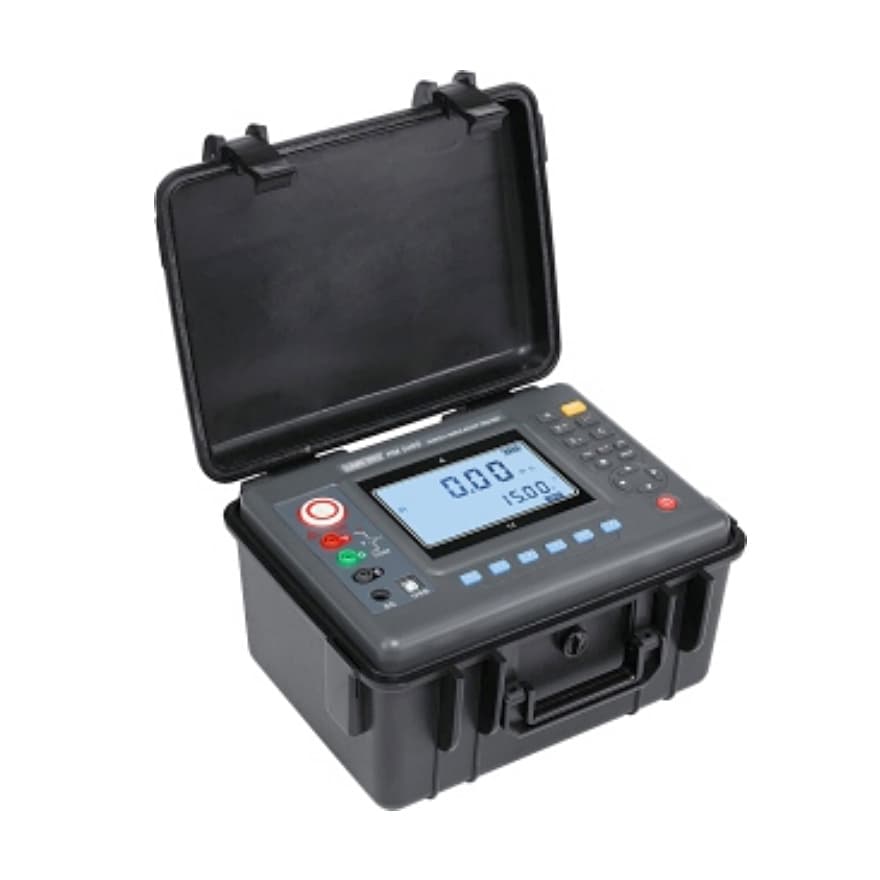

A digital insulation resistance meter, also named megohmmeter, a high voltage insulation resistance tester, is used for insulation resistance tests. This instrument has a large LCD screen gray backlit display, data storage, data review, alarm, Automatic discharge, charging, automatic shutdown and other functions. At the same time, it also has the function of measuring the absorption ratio and polarization index of AC voltage and DC voltage. The machine is beautiful and upscale, has a wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, Large output power and strong anti-interference ability.

Digital insulation resistance meter also has a shockproof, dustproof, moisture-proof structure, and adapts to the harsh working environment. It is a commonly used and indispensable instrument for Telecommunications, electricity, weather, computer rooms, oil fields, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.

Features:

• Backlight Controllable gray screen backlight, suitable for use in dim places
• Display mode: 4-bit large LCD display, gray screen backlight
• USB interface: With USB interface, software monitoring, storage data can be uploaded computer, saved and print
• Communication line: USB communication line 1pc
• Test line: High voltage rod red line 3 meters, high voltage test line black line 1.5 meters, green line 1.5 meters
• Data Storage: 500 groups, "FULL" symbol indicates that storage is full
• Data Review: Data review function: "READ" symbol display
• Overflow Display: Exceed measurement range overflow function: “OL ” symbol display
• Alarm function: When the measured value exceeds the alarm set value, an alarm prompt is issued
• Power Consumption: Standby - 30mA Max(backlight off) / Turn on backlight - 42mA Max / Measure - 200mA Max(backlight off)
• Battery voltage: When the battery voltage is low, the low battery symbol will display

Safety:

• "IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54) pollution grade 2, CAT ? 300V.

Packages Content:

• Digital Insulation Resistance Tester
• High voltage bar
• High voltage test line
• USB communication lineUSB
• Charger
• Software CD
• Instruction Manuals
• Instruments box
