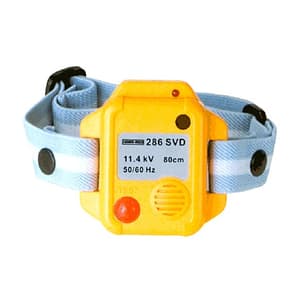

286 SVD is a sensor for sensing AC High Voltage for personal safety. It provides electric engineering personnel, power engineering personnel, firefighting personnel and instrument equipment workers with prominent warnings when approaching high voltage and for taking necessary safety action, preventing illusion and misjudgment which could lead to electric shock to an individual.

When a person wearing 286 SVD is approaching a high voltage source or equipment, the sensor will detect automatically and the buzzer will generate a “Bi-Bi” short sound for warning and the LED will give flashlight to remind operators that the user is approaching a high voltage and special attention shall be given to the safety of operations.

Features:

• Compact, easy to wear and convenient in use.
• Usable both indoor and outdoor.
• Water-proof design.
• Equipped with self-testing functions.
• Sound and flashlight warnings of different frequencies varied positively with sensed voltages.
• Able to sense all kinds of AC High Voltage System.
• Low power consumption.
• CE Certified.

Package Content:

• Elastic cord
• Band
• Bracket
• Instruction manual & Battery



Method of use:

Inspection before use

Check the appearance and structure for any abnormality. Press the Self-Test switch (about 10 seconds) to confirm all functions are working normally. To be careful and to avoid misjudgment, test the unit by contacting AC 110V / 230V insulated wire with its front side to see if it sounds and flashes.

Wearing

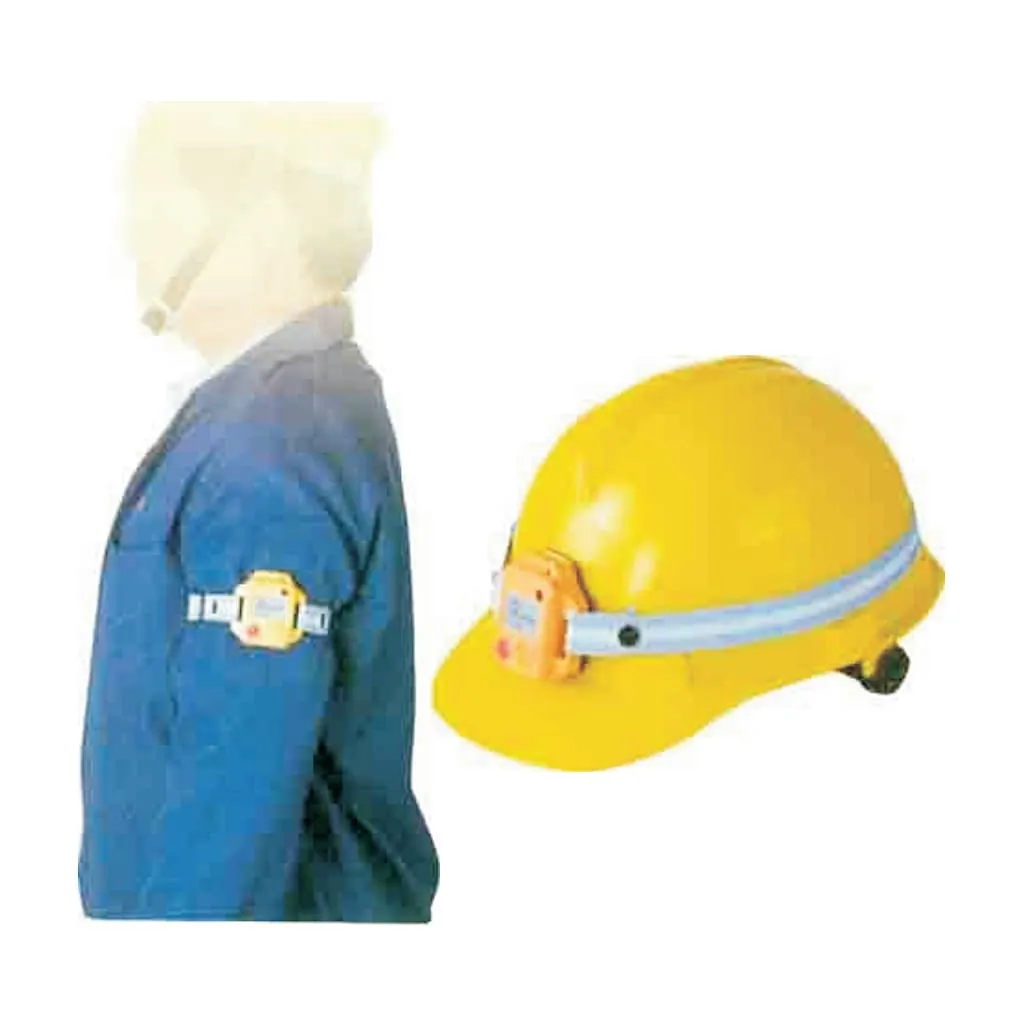

Wear the unit to the outer side of the forearm with the sensing side faces outwardly, as shown in the figure: The effect is best when the sensing side is facing high voltage at a right angle (90Deg.). When it is worn on the inner side of the arm or is covered by cloth, the sensitivity is poorer.
