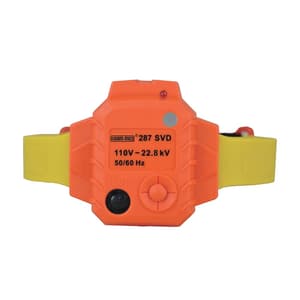

287SVD is a sensor for sensing AC High Voltage. It provides electric engineering personnel, power engineering personnel, firefighting personnel and instrument equipment workers with prominent warning when approaching high voltage source.

Features:

• Compact, easy to wear and convenient in use.
• Usable both indoor and outdoor.
• Water-proof design (IP65)
• Equipped with self-testing functions.
• Able to sense all kinds of AC High Voltage System.
• Low power consumption.
• CE Certified.

Package Content:

• Elastic cord
• Instruction manual & Battery



Technical Data:

Voltage	Detection Distance
6.6kV	40 cm ± 20%
11.4kV	55 cm ± 20%
22.8kV	85 cm ± 20%



Method of use:

Inspection before use

Check the appearance and structure for any abnormality. Press the Self-Test switch (about 10 seconds) to confirm all functions are working normally. To be careful and to avoid misjudgment, test the unit by contacting AC 110V / insulated wire with its front side to see if it sounds and flashes.

Wearing

Wear the unit in front of the safety helmet. Wear the unit to the outer side of the forearm with the sensing side facing outward, as shown in the figure: The effect is best when the sensing side is facing high voltage at a right angle (90Deg.) / When it is worn at the inner side of the arm or is covered by cloth, the sensitivity is poorer.
