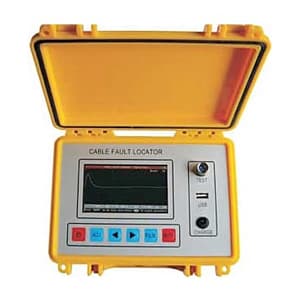

“KUSAM-MECO” underground Cable Fault Pre-locator is an automatic Cable Fault Locator that adopts ARM, FPGA & Dot Matrix Color LCD display Technology. This tester combines both pulse reflecting technology (TDR) & (intelligent Bridge testing (Bridge) (Model-KM-CFPL-620B) for measuring the exact fault location such as broken line, cross faults, earthing, (poor insulation & poor contact of the lead-covered cables as well as plastic cables. (Model-KM-CFPL-620B).

It is a microprocessor-based fault locator with a user-friendly menu. It is easy to operate. It tests almost all telecom & signal cables. It has an English menu which is easy to understand & use. With a Megameter & Ohmmeter, it enables to test of insulation resistance & loop resistance. It has a USB Port for uploading test data to the computer.


Features:

• Small size, lightweight and ABS plastic housing which is ergonomically designed for easy use by the user.
• Menu-driven simple operation.
• Measurement maximum 8 km in selectable ranges.
• Tests any type of copper telecom and signal cables.
• Range, VOP and Gain are selected automatically.
• Color LCD Display (480 x 280 dots).
• Automatic testing mode.
• Pulse reflection (TDR) for open, short.
• Intelligent bridge (Bridge) testing for open, short, or low insulation cable faults. With mega meter, it enables to test of insulation resistance and loop resistance. (KM CFPL 620B)
• Six function keys and simple operation.
• The manual testing function is also available.
• With a 4 GB USB Pen drive, it is easy to upload memory data to the computer.
• Rechargeable lithium battery with intelligent charger
• Continued 8 hours of operating time on the internal battery.
• Rugged construction and easy to carry on-site.

Technical Data: (TDR Mode)

• Fault Distance Range: 8 km (240m, 480m, 1000m, 2000m,4000m & 8000m)
• Fault Measurement Accuracy: 1 Meter
• Cable Constant (VOP) Range: 100 - 300
• Sampling Speed: 100 MHz
• Testing Accuracy: +/- 1% × Cable Length
• Auto Measurement Dead Zone: 0 Meter
• Measurement Dead Zone: 0 Meter
• Pulse Width: 40ns - 10us
• Pulse Waveform: Two-Polarity Pulse
• Pulse Amplitude: 0 - 30V Adjustment Adaptive
• Impedance Matching: Automatic
• Output Impedance: 25 - 120 Adaptive
• Gain Adjustment: Automatic & Manual
• Gain Range Control: 0 - 9
• Resolution: 1 Meter
• Memory Location: U - Disk
• Serial Port for PC/Printer: USB

Package Content:

• Carrying Case
• Re-Chargeable Battery Charger/Adapter
• Connecting Test Cables
• Software CD 4GB Pen Drive
• User Manual
