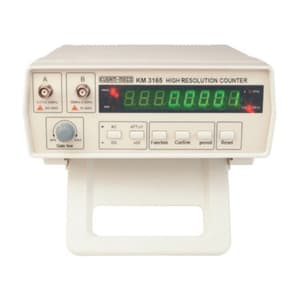

• It is a high-resolution multifunction intelligent frequency counter based on microprocessor technology.
• Frequency, period and equal-precision measurement.
• 3-step function selection, work state, unit and 8-digit LED display.
• Continuous and adjustable gate time.
• Low frequency and other precision measurement.
• Input attenuation, AC/DC coupling select

Technical Data:

1. Frequency Range

CH.A measuring range: 0.01Hz ~ 50 MHz
DC Couple 0.01 Hz to 100Hz / AC Couple 100Hz to 50MHz
Sensitivity	“AC” 100Hz - 50MHz ≤ 80m Vrms / “DC” 0.01 Hz - 1Hz £ 500m Vp-p / 1Hz - 100Hz ≤ 80m Vrms
Attenuator	X 1, X 20



2. Frequency Range

CH.B measuring range: 50 MHz ~ 2.4 GHz
Sensitivity	50MHz ~ 1.2GHz ≤ 80m Vrms / 1.2GHz ~ 2.4GHz > 80m Vrms
Coupling	AC only



Cyclic Measurement

CH. A measuring range: 0.02 µS ~ 10S Sensitivity 80mVrms > 1S CH. B measuring range : 0.5 nS ~ 0.02 µS Sensitivity 500mVrms > 1S



Resolution

Step	Coupling	Frequency Range	Gate Time Min.	Gate Time Max.
1	AC	1GHz - 2.4 GHz	1kHz	100Hz
1	AC	50MHz - 1 GHz (not including 1GHz)	1kHz	10Hz
2	AC	2MHz - 50MHz	1kHz	10Hz
3	AC	100Hz - 2MHz	10Hz	0.1Hz
3	DC	0.01Hz - 100Hz (no including 100Hz)	0.001Hz
