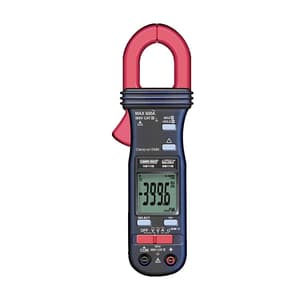

Duo-Core to simultaneously measure clamp-on Amps + A DMM functions. VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives.

Features & Benefits:

• 600A AC Clamp-on + Multimeter ranges
• Ultra-slim jaws to access tight places
• Lightweight & compact body to fit your hand
• Fully Auto-ranging for fast measurements
• Input Protection on all ranges
• Fast 30ms MAX Hold to capture in-rush currents
• Relative Zero mode
• Measures non-invasive ACA Frequency via clamp jaws
• Line-level frequency measurements
• Data Hold function

Safety:

• Meets IEC61010-2-032, EN61010-2-032, UL61010B-2-032, IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed. / Measurement Category : CAT III 600 Volts AC & DC.
• E.M.C.: Meets EN61326 (1997, 1998/A1), EN61000-4-2 (1995, 2000/A2), and EN61000-4-3 (2002) In an RF field of 3 V/m: Capacitance function is not specified. Total Accuracy = specified Accuracy + 65 digits
• Other function ranges: Total Accuracy = Specified Accuracy + 45 digits
• Performance above 3V/m is not specified.
• Overload Protection: ACA Clamp-on jaws: AC 600A rms Continuous.; + / mA & COM terminals: 600VDC / VAC rms.
• Transient protection: 6.5KV (1.2/50µS surge)
• Rugged Fire-retarded casing / Pollution degree - 2

Package Content:

• Test lead pair
• Battery installed
• User’s Manual & Carrying case
