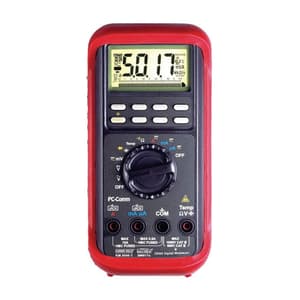

Kusam-Meco 3-4/5 Digits / 5000 Counts Digital Multimeter With Analog Bar Graph & RS-232 Computer Interface, KM 5040-T
Roll over image to zoom zoom_in
- Weight: 430 Grams
- Product Type: Multimeter
- Operating Temperature: 0°C to 45°C
- Pollution Degree: 2
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹15646.8 (Incl. of all taxes)
₹13260+ ₹2386.8 GST (18%)
MRP ₹16575
SAVE 20%
3 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Double insulation per IEC / UL / EN61010-1 2nd Ed., 3.0, IEC / EN61010-2-030 Ed. 1.0, IEC / EN61010-2-033 Ed. 1.0, IEC / UL / EN61010-031 Ed. 1.1 & CAN / CSA-C22.2 No.61010-1-12 Ed. 3.0 to CAT III 1000V AC & DC and CAT IV 600V AC & DC.
Features & Benefits:
- Basic DC Voltage Accuracy: 0.08%
- 50ms record MAX-MIN readings at fast 20/second measurement mode
- 0.8ms Crest (instantaneous Peak-HOLD)
- Data Hold & Range- Hold
- Backlighted Display
- Autoranging
- MAX-MIN readings
- Fire retarded casing.
- Diode & Continuity Test
- Type-K Temperature
- Audible & Visible BeepJack Input warning against improper plug in
- Relative-Zero offset mode
- Zoom 5x Analog pointer at 60/s
- Auto power off
- PC Interface (BRUA-85Xa) (Optional)
Safety:
- E. M. C: Meets EN61326-1:2013
- In an RF field of 3V/m: The capacitance function is not specified
- Other function ranges: Total Accuracy = Specified Accuracy + 100 digits
- Performance above 3V/m is not specified.
- Transient Protection: 8kV lightning surge (1.2/50µs)
- Terminals (to COM) Measurement Category V/ mAµA / A: CAT III 1000 Volts AC & DC, and CAT IV 600 Volts AC & DC
- Overload Protection (µA & mA): 0.44A/1000V, IR 10kA , F fuse
- Overload Protection (A): 11A/1000V, IR 20kA, F fuse
- Overload Protection (V): 1100V DC/AC rms
- Overload Protection (mV, Ω & Others): 1000V DC/AC rms
Package Content:
- Test leads (pair)
- Holster, Battery
- User's Manual
- Bkp60 banana plug K Type Thermocouple
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00150 |
|---|---|
| Product Type | Multimeter |
| Model No | KM5040-T |
| Sensing | AC True RMS |
| Operating Temperature | 0°C to 45°C |
| Pollution Degree | 2 |
| Altitude | Operating Below 2000 m |
| Power Consumption | 4.3mA Typical |
| Low Battery | Below approx. 7V |
| APO Timing | Idle for 17 Minutes |
| APO Consumption | 50µA typical |
| Power Supply | Single 9V battery |
| Display | 3-4/5 digits 5000 counts LCD display |
| Storage Temperature | -20°C to 60°C, 80% R.H. (With Battery Removed) |
| Update Rate | Fast Data: 5/second Nominal; 52 Segment Bar-graph: 60 Per Second Nominal |
| Relative Humidity | Maximum 80% R.h. For Temperature Upto 31°c Decreasing Linearly To 50% R.h. At 45°c |
| Temperature Coefficient | Nominal 0.15 x (Specified Accuracy) / °C @ (0°C ~ 18°C or 28°C ~ 45°C), or Otherwise Specified |
| Dimension (LxWxH) | 186 x 87 x 35.5 mm (Without Holster) / 198 x 97 x 55 mm (With Holster) |
