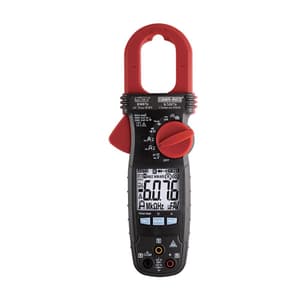

AmpTip™ low-current range calibrated at Jaw-tip for slim conditions for accurate readings. VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives

Features & Benefits:

• MAX/MIN/AVG Recording mode (Auto-ranging)
• Display Hold & Non-Contact EF-Detection (NCV)
• Back-lighted easy-to-read LCD display
• Fast 80ms Peak-RMS mode to capture in-rush currents
• Auto-ranging Relative mode with DC-Zero mode & 5ms Crest (Instantaneous Peak-Hold) mode
• 3-Phase Rotation-R for MAINS supply (Probe contact)
• 3-Phase Rotation-M (Hi-sensitivity mode) for Motors (Probe-contact)
• Relative Humidity - Maximum relative humidity is 80% for temperatures up to 31ºC decreasing linearly to 50% relative humidity at 40ºC
• Temperature Coefficient - Nominal 0.15 x (specified accuracy) / °C @ (0°C - 18°C or 28°C - 40°C), or otherwise specified
• Low Battery - Below approx. 2.85V for Capacitance & Hz Below approx. 2.5V for other functions

Safety:

• Double insulation per UL/IEC/EN61010-1 Ed. 3, IEC/EN61010-2-033 Ed. 1, CAN/CSA C22.2 No. 61010-1 Ed. 3, IEC/EN61010-2-032 Ed. 3 & IEC/EN61010-031 Ed. 1.1
• Measurement Category: CAT III 600V AND CAT IV 300V AC & DC
• E.M.C.: Meets EN61326-1: 2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11): DCA and DC+ACA Functions, in an RF field of 1V/m : Total Accuracy = Specified Accuracy + 20 digits at around 405MHz DCµA and Ohm Functions, in an RF field of 1V/m : Total Accuracy = Specified Accuracy + 25 digits Other Functions, in an RF field of 3V/m : Total Accuracy = Specified Accuracy + 20 digits
• Overload Protection: Current & Hz functions via jaws : 600ADC/AAC rms at <400Hz; Voltage & 3-Phase Rotation functions via terminals : 660VDC/ 920VAC rms; Other functions via terminals : 600VDC/ VAC rms
• Pollution Degree: 2 / Rugged Fire retarded casing
• Transient Protection : 6.0kV (1.2/50µs surge)
• LVD EN61010-2-032/EN61010-2-032/EN61010-2-033 to CAT III 600V & CAT IV 300V

Package Content:

• Test leads set
• Users Manual
• Soft carrying pouch
• Bkp60 banana plug K-type thermocouple
• Alligator Clip set
• BKB32 banana plug to type-K socket plug adaptor (for optional purchase)

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
