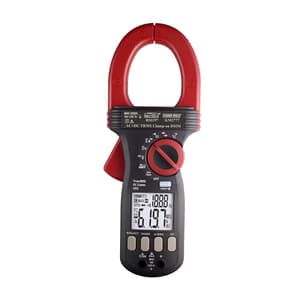

Kusam-Meco 3-5/6 Digits 6000 Counts AC/DC TRMS Clamp-On Multimeter with VFD, EF-Detection & PC Interface, KM 2777
Roll over image to zoom zoom_in
- Weight: 608 Grams
- Product Type: Clamp Meters
- Jaw Opening: 55mm max
- Display: 3-5/6 Digits 6000 Counts & 3½ Digits 1,999 Counts For Hz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹18242.8 (Incl. of all taxes)
₹15460+ ₹2782.8 GST (18%)
MRP ₹19325
SAVE 20%
3 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- AutoCheck Voltage & Ohms
- VFD-V & VFD-HZ function
- 5ms CREST-MAX capture mode (Peak Hold)
- Autoranging Relative -Zero mode
- Display Hold function
- EF-Detection (NCV)
- Backlight LCD Display
- Auto Power Off
- Diode Test & Continuity Test
- PC Interface (Optional)
Safety:
- Double insulation per IEC/EN61010-1 2nd Ed., UL61010-1 2nd Ed., & CAN/CSA C22.2 No.61010.1-0.92 to Category CAT IV 1000V AC & DC.
- Transient Protection: 12 kV (1.2/50µs surge)
- Overload Protection: Clamp-on jaws: 2000A rms continuous “ + ” & COM Terminals (all other functions): 1000V rms.
- Pollution degree: 2
- EMC: Meets EN61326-1:2006 (EN55022,EN61000-3-2,EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4,EN61000-4-5,EN61000-4-6, EN61000-4-8,EN61000-4-11) in an RF field of 3V/m : Capacitance function is not specified Other function ranges : Total Accuracy = Specified Accuracy + 200 digits Performance above 3V/m is not specified.
Package Content:
- Meter
- Test leads (pair)
- User’s manual
- Bkp60 banana plug K-type Thermocouple x 1
- Carrying case
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.CL.00178 |
|---|---|
| Product Type | Clamp Meters |
| Model No | KM2777 |
| Sensing | TRMS Sensing |
| Jaw Opening | 55mm max |
| Display | 3-5/6 Digits 6000 Counts & 3½ Digits 1,999 Counts For Hz |
| Update Rate | 5 Per Second Nominal |
| Polarity | Automatic |
| Low Battery | Below approx 2.4V |
| Operating Temperature | 0°C - 40°C |
| Relative Humidity | Maximum 80% R. H. for temperature upto 31°C decreasing linearly to 50% Relative Humidity at 40°C |
| Storage Temperature | -20°C to 60°C, < 80% R.H. (With Battery Removed) |
| Altitude | Operating Below 2000 m |
| Temperature Coefficient | Nominal 0.15 x (Specified Accuracy) / °C @ (0°C - 18°C or 28°C - 40°C) or Otherwise Specified |
| Power Supply | Standard 1.5V AAA Battery x 2 |
| Power Consumption | Typical 14mA For Current Function & 5.2mA For Others |
| APO Timing | Idle For 34 Minutes |
| APO Consumption | 10µA Typical |
| Dimension (LxWxH) | 264 x 97 x 43 mm |
