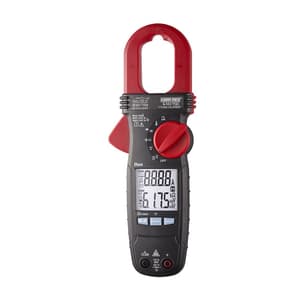

Duo-Core to simultaneously measure clamp-on Amps + A DMM functions. VFD-V & Hz for fundamental V/Hz of most Variable-Frequency-Drives.

Features & Benefits:

• AmpTip™ low-current range
• Backlighted LCD display.
• Display Hold & Non-Contact EF-Detection (NCV)
• AC True RMS Voltage & Current Functions.
• Fast 80ms Peak-RMS mode to capture in-rush currents
• Probe contact EF-Detection for a more precise indication of life.
• Line level ACV frequency 10.00Hz to 999.9Hz.
• Cx ranges from 200.0 µF to 2500 µF for start & Run Motor Capacitors.
• Relative Humidity - Maximum 80% R.H. for temperature up to 31°C decreasing linearly to 50% R.H. at 40°C.
• Temperature Coefficient - Nominal 0.15 x (specified accuracy) / ° C @ (0 ° C - 18 ° C or 28 ° C - 40 ° C), or otherwise specified
• Low Battery - Below approx. 2.85V for Capacitance & Hz / Below approx. 2.5V for other functions

Safety:

• Double insulation per UL/IEC/EN61010-1 Ed. 3.0, CAN/CSA C22.2 No. 61010-1 Ed. 3.0, UL/IEC/EN61010-2-032 Ed. 3.0 & UL/IEC/EN61010-2-033 Ed. 1.0 CAT III 600V & CAT Iv 300V AC & DC
• E.M.C.: Meets EN61326-1 : 2013 Temperature function at 80MHz ~ 150MHz : In an RF field of 1V/m : Total Accuracy = Specified Accuracy + 25 digits
• Other Functions: In an RF field of 3V/m : Total Accuracy = Specified Accuracy + 20 digits
• Overload Protection : Clamp-on jaws : 600A rms continuous “+” & COM Terminals (all other functions): 600VDC/VAC rms
• Pollution Degree: 2
• Transient Protection : 6.0kV (1.2/50ms surge)
• Rugged Fire retarded casing
• LVD EN61010-2-032 / EN61010-1 to CAT III 600V & CAT IV 300V

Package Content:

• Test leads set
• Users Manual
• Carrying Case
• Bkp60 banana plug K-type thermocouple.
