• VFD V & Hz readings
• Paper White Backlight LCD Display
• Record MAX / MIN readings
• Display Hold Function
• Dual Digital Display
• PI & DAR Function
• Autoranging
• Pass /Fail Insulation Resistance Compare function; 12 selectable Preset Values
• LOCK-Test mode for Insulation Resistance & Earth Continuity Test
• BeepJack ™ audible & visible input warning
• Remote Probe for Insulation Resistance & Earth Continuity Test
• Functions: DC/AC Voltage, VFD AC Voltage, Insulation Resistance, Resistance, Earth Continuity Test, Hz Line Level Frequency
• Auto or Manual-ranging mode
• Auto Power Off
• Earth Continuity Test: 110mA @20 Ω range, 220mA @2.0 Ω range. The tester can perform at least 3000 Earth Continuity Test measurements with new alkaline batteries at room temperature. These are standard tests of 1 Ω with a duty cycle of 5 seconds on & 25 seconds off.
• Relative Humidity: Maximum relative humidity 90% for temperature up to 28°C decreasing linearly to 50% relative humidity at 40°C.
• Temperature Coefficient: Nominal 0.15 x (specified accuracy)/ °C @(-10°C~18°C or 28°C~40°C), or otherwise specified

Insulation Resistance @ 1mA Test Current:

• 50V output Voltage: 25mA
• 100V output Voltage: 45mA
• 250V output Voltage: 85mA
• 500V output Voltage: 170mA
• 1000V output Voltage: 440mA
• Tester can perform at least 950 Insulation Tests with new alkaline batteries at room temperature.
• These are standard tests of 1000V into 1MΩ with a duty cycle of 5 seconds on and 25 seconds off.

Safety:

• Double Insulation Per IEC/UL/EN61010-1 Ed. 3.0, IEC/EN61010-2-030 Ed. 1.0, IEC/EN61010-2-033 Ed. 1.0, IEC/UL/EN61010-031 Ed. 1.1 and CAN/CSA-C22.2 No. 61010-1-12 Ed. 3.0 to CAT III 1000 V AC & DC and CAT IV 600V AC & DC.
• Compliance to IEC/EN61557; 2007 (per CE requirements, not certified by UL or ETL): IEC/EN61557-1, IEC/EN61557-2 & IEC/EN61557-4 where applicable.
• E.M.C: Meets EN61326-1:2006 (EN55022, EN61000-3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) In an RF field of 3V/m: Total Accuracy = Specified Accuracy + 25 digits. Performance above 3V/m is not specified.
• Overload Protections: Earth Continuity Test - 0.25A/1KV, IR 30kA or better / V: 1100Vrms / mV, Ω & Others: 1000 Vrms

Package Content:

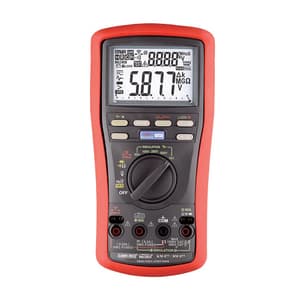

• Multimeter
• Test probe pair
• BRP21S2-C Remote probe
• Alligator clip pair
• Holster
• User manual
• Carrying Case
