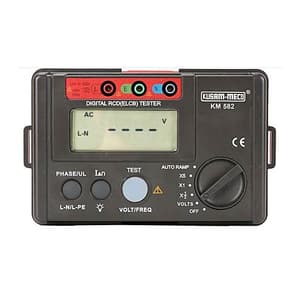

Kusam-Meco 30 - 600V Digital RCD (ELCB) Tester, KM 582
Roll over image to zoom zoom_in
- Weight: 400 Grams
- Product Type: Electrical Testers
- Voltage Range: 30 ~ 600V
- Frequency: 45Hz ~ 65Hz
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹12059.6 (Incl. of all taxes)
₹10220+ ₹1839.6 GST (18%)
MRP ₹12775
SAVE 20%
3 Business Days
1 Pcs
90318000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
KM-582 is mainly used to detect whether the RCD in the circuit can be triggered normally. It is only suitable for single-phase circuits with a supply voltage range of 195V~253V. Its voltage measurement range is 30V~600V, 45Hz ~65Hz. Compliance Standard: IEC 61010-1, IEC 61010-2-030, IEC 61010-2-033, IEC 61557-1:2007; IEC 61557-6:2007, EN61326-1, EN61326-2-2.
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Features:
- Auto power off function
- LCD backlight
- Data Hold
- Auto ramp
- Buzzer indication to disconnect
- Over-range indication
- 1000 counts display
- Low battery indication: <7.2V
- Mis-operation buzzer
- Power off buzzer
- Fuse protection
- CAT III 600V
Technical Data:
| Range Setting | Rated operating current | Trip Time | Accuracy |
| X 1/2 | 10mA / 20mA / 30mA / 100mA / 300mA / 500mA | 2000ms | -10% ~ 0% |
| X 1 | 10mA / 20mA / 30mA / 100mA / 300mA | 1000ms | 0% ~ 10% |
| 500mA | 300ms | ||
| X 5 | 10mA/20mA/30mA | 40ms | |
| Auto ramp | 10mA / 20mA / 30mA / 100mA / 300mA / 500mA | 300ms | -10% ~ 10% |
| Trip time accuracy | ±(2%+2) | ||
| Operating voltage (Freq.) | 195V ~ 253V | ||
Package Content:
- Digital RCD Tester
- Test line
- Elastic strap
- Manual
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.EL.00047 |
|---|---|
| Product Type | Electrical Testers |
| Model No | KM582 |
| Voltage Range | 30 ~ 600V |
| Frequency | 45Hz ~ 65Hz |
| Resolution | 1V |
| Accuracy | ±(3%+3) |
| Phase Angle Selection | 0° & 180° |
| Display Type | LCD Display |
| Display Size | 71mm x 34mm |
| Power Supply | 1.5V Battery (LR 6) x 6 |
| Connections Check | Simultaneously Test The Trip Time & Trip Current |
| Dimension (WxHxD) | 160 x 100 x 71 mm |
