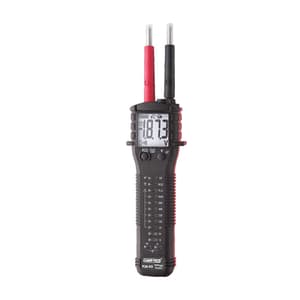

Kusam-Meco 30mA / 230V AC Voltage Detector With With RCD Load Test & EF Detection, KM 69

Name: Kusam-Meco 30mA / 230V AC Voltage Detector With With RCD Load Test & EF Detection, KM 69
Brand: Kusam-Meco
SKU: ME.EL.EL.00032
Price: 6840 INR
Availability: InStock
Rating: 3.5 (55 reviews)

Shop all Kusam-Meco

SKU: ME.EL.EL.00032

Model: KM69

Roll over image to zoom zoom_in

Visit Kusam-Meco Store keyboard_double_arrow_right

Key Features

Weight: 235 Grams
Product Type: Electrical Testers
Operating Temperature: -10°C ~ 55°C
Low Battery: 2.6 V

See all product information chevron_right

ToolBuy Benefits

receiptGST Invoice
headphonesCustomer Service
lockSecure Payments
policyReturns & Warranty
home_pinOrder Tracking
paymentsBuy in Installments

₹8071.2 (Incl. of all taxes)

₹6840+ ₹1231.2 GST (18%)

MRP ₹8550

SAVE 20%

Dispatch: 3 Business Days

Items in Pack: 1 Pcs

HSN Code: 90303100

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right

picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right

picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

Detachable (Black) test lead for easy replacement. User Replaceable Screw-On stationary (Red) Probe Body. Meets IEC/EN61010-1Ed. 3.0, IEC/EN61010-2-033Ed. 1.0, IEC/EN61243-3:2014 to CAT III 1000V & CAT IV 600V.

Features:

EF-Detection
RCD leakage-path
LCD Indication
RST Phase Rotation Detection
AC-Detection Shaker
Handy & Stylish, Fits Comfortably in one hand
19mm Probe Pitch For Quick European Receptacle Testing
4mm Test Tips with IP2X Retractable shroud for IEC61243-3 Ed3
Battery-less ELV Limit (120VDC/50VAC) LED Indication
Battery-less DCV & ACV Auto-selection with LED polarity indication
Battery-less DCV 8-Ranges LED Indication: 12, 24, ... to 1000V
Battery-less ACV 8-Ranges LED Indication: 12, 24, ... to 1000V
Automatic Power On & Power Off
Non-contact EF-Detection (NCV)
Probe contact EF-Detection for a more precise indication of live
Continuity: Audible beeper & visible LED indications
Low Battery warning for battery-operated functions & features
Battery Access Door
Power Consumption (typical): 2.7mA for Power-on ready & DCV; 50mA for ACV (with shaker on) 105mA For RCD; 40mA for Buzzer on @ Continuity or EF function; 55mA for resistance or capacitance; Add 30mA for backlight on
Display Backlight & flash-light for easy viewing in the dark
True RMS ACV Reading on LCD Numeric Display
AC-Detection Shaker indicates ACV is being measured
RCD Leakage Load for 230V AC / 30mA RCD Circuit Breakers
RST Phase sequence / Rotation indication

Safety:

Transient Protection: 8kV lightning surge (1.2/50µs)
Measurement Category: CAT III 1000V & CAT IV 600V AC & DC
Overload Protection: 1100VDC & VAC rms
Type of Protection: IP65 Per EN60529 - water and Dust Resistant
Rugged fire retarded double injected casing
E. M. C: Meets EN61326-1:2013 / For LCD display only / Total Accuracy = Specified accuracy + 45d @ an RF field of 3V/m

Package Content:

Batteries
User's manual
Screw-on stationary red probe and detachable leaded black probe

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.

Specifications

SKU	ME.EL.EL.00032
Product Type	Electrical Testers
Model No	KM69
Operating Temperature	-10°C ~ 55°C
LCD Display	3½ Digits 1999 Counts
Update Rate	5 Per Second Nominal
Relative Humidity	Less Than Equal To 90%
Altitude	Operating below 2000 m
Pollution Degree	2
Low Battery	2.6 V
APO Timing	Idle For 16 Seconds
APO Consumption (Typical)	12µA
Sensing	TRMS Sensing For LCD Indication
Storage Temperature	-20°C ~ 65°C, £ 80% R.H. (With Battery Removed)
Temperature Coefficient	Nominal 0.15 X (Specified Accuracy) / °C @ (10°C ~ 18°C or 28°C ~ 50°C), or Otherwise Specified
Power Supply	1.5V AAA Size (NEDA 24A or IEC LR03) Alkaline Battery x 2
Dimension (LxWxH)	278x57x40 mm
