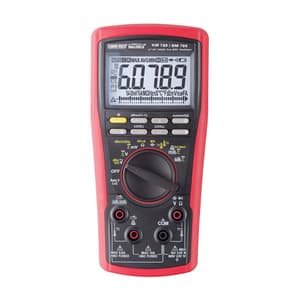

Kusam-Meco 4-5/6 Digits / 60000 Counts AC / DC 100 kHz TRMS Multimeter, KM 789
Roll over image to zoom zoom_in
- Weight: 420 Grams
- Product Type: Multimeter
- Altitude: Operating below 2000 m
- Low Battery: 3.7 V
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹21216.4 (Incl. of all taxes)
₹17980+ ₹3236.4 GST (18%)
MRP ₹22475
SAVE 20%
3 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
Double insulation per IEC/UL/EN/BSEN 61010-1 Ed. 3.0, IEC/UL/EN/BSEN 61010- 2-030 Ed. 1.0, IEC/UL/EN/BSEN 61010-2-033 Ed. 1.0, IEC/UL/EN/BSEN 61010-031 Ed. 2.0 and the corresponding CAN/CSA-C22.2 regulations to Measurement Categories III 1000V AC & DC and Category IV 600V AC & DC
Features & Benefits:
- Auto Hold
- VFD
- BeepLit™ Continuity
- Record MAX, MIN, & AVG readings
- Crest (Instantaneous Peak hold) MAX & MIN readings
- Relative Zero mode
- Data Hold
- Backlighted LCD display
- BeepJack™ audible & visible input warning
- %4-20mA loop
- current readings
- T1-T2 differential temperature readings
- dBm readings
Safety:
- E. M. C: Meets EN/BSEN 61326-1:2013
- Transient Protection: 8kV (1.2/50ms surge)
- Overload Protection (µA & mA): 0.4A/1000V DC/AC, IR 30kA or better, F fuse
- Overload Protection (A): 11A/1000V DC/AC, IR 20kA or better, F fuse
- Overload Protection (V): 1100V DC/AC rms
- Overload Protection (mV, Ω & Others): 1000 V DC/AC rms
Package Content:
- Test leads (pair)
- Holster, Battery
- User's Manual
- Bkp60 banana plug K Type Thermocouple
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00151 |
|---|---|
| Product Type | Multimeter |
| Model No | KM789 |
| Sensing | AC and AC+DC True RMS |
| Display | 4-5/6 Digits 60,000 Counts |
| Polarity | Automatic |
| Altitude | Operating below 2000 m |
| Low Battery | 3.7 V |
| APO Timing | Idle For 15 Minutes |
| APO Consumption | 15µA typical |
| Operating Temperature | -20ºC to 55ºC Continuous Operating |
| Storage Temperature | -20ºC to 60ºC, < 80% R.H. (With Battery Removed) |
| Power Supply | 1.5V AAA Alkaline battery x 3 |
| Update Rate | 4-5/6 Digits: Max 5 Per Second Nominal / 31 Segment Bar-graph: 50 Per Second Max |
| Relative Humidity | Maximum Relative Humidity 80% For Temperature Up To 31ºc Decreasing Linearly To 50% Relative Humidity At 55ºc |
| Temperature Coefficient | Nominal 0.10 X (Specified Accuracy)/ ºc @ (-20ºc ~ 18ºc Or 28ºc ~ 55ºc), Or Otherwise Specified |
| Power Consumption | 10ma Typical For Ac & Ac+dc Voltage/current Functions; 8mA Typical For Other Functions |
| Dimension (LxWxH) | 193 X 89 X 51 mm |
