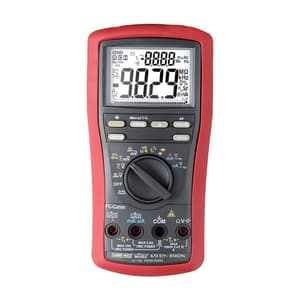

Kusam-Meco 4 Digit / 9999 Counts AC + DC TRMS Digital Multimeter with PC Interface, KM 829
Roll over image to zoom zoom_in
- Weight: 635 Grams
- Product Type: Multimeter
- Operating Temperature: 0°C to 45°C
- Pollution degree: 2
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹19328.4 (Incl. of all taxes)
₹16380+ ₹2948.4 GST (18%)
MRP ₹20475
SAVE 20%
3 Business Days
1 Pcs
90303100
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Beep-Jack Audible & Visible Input Warning
- Auto-Ranging
- Relative Zero Mode
- PC Interface Capability
- AutoCheck V-Ω; Auto-Ranging
- Crest (Instantaneous Peak Hold)
- T1-T2 differential Temperature readings.
- Data Hold
Features & Benefits:
- DC Voltage Basic Accuracy 0.08%
- AC; AC+DC True RMS Conversion Frequency
- Bandwidth upto 20kHz (V) & 1kHz (A)
- 4 Digit 10,000 counts large easy to read Backlight LCD display
- Fast Measurements, 5/sec; Fully Auto-Ranging
- Record Max/Min readings, Auto Ranging
- NCV & Probe-Contact EF-Detection
- dBm function with 20 selectable values
- Lo-Z volts to drain Ghost Voltages (AutoCheck Feature)
- Logic & Line Level Frequency
- Logic Level Duty Cycle Readings & Diode Tester
- Fast Audible Continuity
- Auto Power Off
Safety:
- Double insulation per IEC/UL/EN61010-1 Ed. 3.0, IEC/EN61010-2-030 Ed. 1.0, IEC/EN61010-2-033 Ed. 1.0, IEC/UL/ EN61010-031 Ed. 1.1 and CAN/ CSA-C22.2 No. 61010-1-12 Ed. 3.0 to Cat IV 1000V AC & DC
- Transient Protection: 12 kV (1.2/50ms surge)
- Terminals (to Com) Measurement Category: V/A/mAµA - Category IV 1000VAC & DC
- Overload Protection: µA & mA: 0.44A / 1000V DC/AC rms, IR 10kA, F Fuse A: 11A / 1000V DC/AC rms, IR 20kA, F Fuse V: 1100V DC/AC rms mV, ohms & Others: 1000V DC/AC rms
- EMC: Meets EN61326-1:2006 (EN55022, EN61000- 3-2, EN61000-3-3, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11) In an RF field of 3V/m : Capacitance function is not specified Other function ranges : Total Accuracy = Specified Accu. + 100 dgts Performance above 3V/m is not specified
- Rugged fire retarded casing with battery access door
- Replaceable protective holster with probe-holders & Tilt-stand
- 600V (Ohm, Capacitance & all other Functions) Input protection
- 600V High Breaking Capacity fuses protection on Current inputs
- LVD meets EN61010-1 CAT IV 1kV
Package Content:
- Test lead pair
- Battery installed
- User Manual
- One BKP60 banana plug type-K Thermocouple
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision. M.R.P Prices and specifications are subject to change without notice.
Specifications
| SKU | ME.EL.MU.00143 |
|---|---|
| Product Type | Multimeter |
| Model No | KM829 |
| Operating Temperature | 0°C to 45°C |
| Pollution degree | 2 |
| Low Battery | Below approx. 7V |
| Sensing | AC, AC+DC True RMS |
| Altitude | Operating below 2000 m |
| Power Consumption | 5mA typical |
| APO Timing | Idle for 30 minutes |
| Power Supply | 1 x 9V battery |
| IP Rating | IP54 |
| APO Consumption | 50 µA typical |
| Display | 9999 Counts: ACV, DCV, Hz & nS / 6000 Counts: mV, µA, mA, A, Ohm & Capacitance |
| Update Rate | Digital Display - 5 per second nominal / 41 Segments Bar-graph - 60 per second max |
| Relative Humidity | Max. 80% R.H. for Temperature up to 31°C decreasing linearly to 50% R.H. at 45°C |
| Storage Temperature | -20°C to 60°C, <80% R.H. (with battery removed) |
| Temperature Coefficient | Nominal 0.15 x ( specified accuracy)/°C @ (0°C ~ 18°C or 28°C ~ 45°C), or otherwise specified |
| Dimension (LxWxH) | 208 x 103 x 64.5 mm |
| Weight | 390 gm or 500 gm with Holster |
