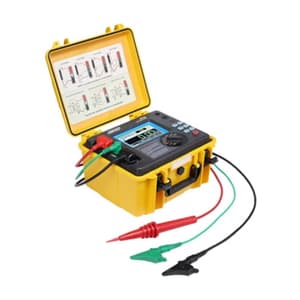

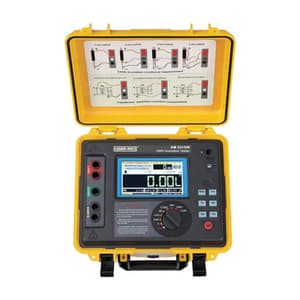

High Voltage Insulation Resistance Tester is an intelligent high-end insulation resistance tester. The instrument has perfect test functions of various insulation resistance parameters and excellent anti-interference ability. The instrument adopts a true color touch screen, all test data and battery power are displayed on the same screen and the combination of knob switch and button makes the operation very simple.

The user does not need to memorize the operation method, click the "HELP" on the screen to pop up the operation method which effectively guides the user to operate the instrument. The instrument has the function of rapid discharge and automatically monitors the live voltage of the measured object. If the voltage exceeds 36V will automatically prohibit the test to protect the instrument and operators effectively.

The meter automatically stores test results which contain the date and time, the touch screen can be very convenient for consulting the recorded historical data, and the fully isolated USB interface can upload the test data to the PC safely. The instrument is equipped with double insulation and shielding layer test wire & the high voltage rod is equipped with replaceable crocodile clips and hooks, which can be used in various test places. The instrument adopts a hard double-shell structure, and the meter outer case with IP65 protection level, which can prevent moisture and dust intrusion and collision during the transportation and storage process, protecting the meter effectively.

Features:

• Suitable for Measuring Insulation Resistance in 400KV Substations.
• Max Output Voltage 15KV
• Max Test Resistance 30TW
• Max Short Circuit Current 7mA
• Polarization Index Test (PI)
• Dielectric Absorption Ration Test (DAR)
• Ramp Test Mode (RAMP)
• Filtered Resistance Test Mode (FR)
• True Color Touch Screen
• Large Capacity Rechargeable Lithium Battery
• USB Data upload function.
• CAT IV 600V
• With the combination of a touch color screen, button and wave band knob, the function perfect can be directly tested with one button, and the operation of the inquiry record is simple and convenient.
• Rich display content that can be displayed on the same screen: various test modes and insulation resistance value, output voltage and the voltage of tested object, current, test timing, test time, battery power, operation help, etc.
• Double shell structure, firm and durable, protection level IP65.
• Large capacity rechargeable lithium battery.
• The voltage monitor function automatically monitors the live voltage of the tested object.
• The test timer function automatically records test time.
• Automatic discharge function, Instantaneous release of the charging charge of the measured object after the test, no need to add the discharge circuit.
• Store function automatically stores 1000 groups of real-time test data with test date, time and timing.
• Upload function, the recorded data can be uploaded to the computer by USB communication cable for data statistical analysis.

Product Function:

• Suitable for insulation resistance testing of cable, motor, generator, transformer, mutual inductor, high voltage switch, arrester and other large equipment.
• Insulation resistance measurement (IR)
• Polarization index measurement (PI)
• Dielectric absorption ratio (DAR)
• Ramp test mode (RAMP)
• Filtered resistance test mode (FR)
• Voltage test(V)
• Capacity test(uF)
• Current test (nA)

Technical Data:

• Rated Voltage: 250v, 500v, 1000v, 2500v, 5000v
• Output Voltage Accuracy: (5%~10%)±10V
• Insulation Resistance Range: 0.5MΩ~10TΩ
• Output Short Circuit Current: Greater than or equal to 7mA
• Ramp Test Mode: The output voltage will start at 10% of the preset voltage and increase in steps by 10% until the preset voltage is reached
• Voltage Monitor: Monitor the voltage of the measured object, and monitor discharge status after the test, Forbidden to test when voltage is larger than 36V, protect instrument and operator
• Test Wire: Red high voltage test wire 1 pcs (with alligator clip 1 Pcs and hook 1 Pcs), green test wire 1 Pcs, black test wire 1 Pcs

Safety:

• IEC61010-1, IEC61326-1

Packages Content:

• High Voltage Insulation Resistance Tester
• 1Pcs x Host
• 1 Pcs x High voltage test wire(red)
• 1 Pcs x Test wire (green)
• 1 Pcs x Test wire (black)
• 1 Pcs x Alligator clip
• 1 Pcs x Hook
• 1 Pcs x USB communication cable
• 1 Copy x Software CD
• 1 Pcs x Tool bag
