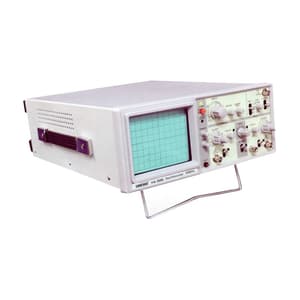

Kusam-Meco 60MHz Dual Channel / Dual Trace Analog Oscilloscope, KM 5060
Roll over image to zoom zoom_in
- Product Type: Oscilloscopes
- Bandwidth: 60 MHz
- Frequency: 1KH 20%
- No. of Channels: Dual Channel
- receiptGST Invoice
- headphonesCustomer Service
- lockSecure Payments
- policyReturns & Warranty
- home_pinOrder Tracking
- paymentsBuy in Installments
₹53572 (Incl. of all taxes)
₹45400+ ₹8172 GST (18%)
MRP ₹56750
SAVE 20%
3 Business Days
1 Pcs
90302000
picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right
Highlights
- Dual channels / dual traces, X-Y mode
- 6” display, high brightness oscilloscope tube
- High sensitivity triggering, up to 1mV / division clearer display than an ordinary oscilloscope.
- TV synchronous separation circuit to observe stable TV signal.
- Triggering mode : AUTO / NORM / AV-V / AV-H
- Vertical: ALT / CHOP / ADD X-x10 / Y-x5; Polarity reversal; CH1 Sync output
Triggering System:
- Triggering mode: NORM, AUTO, TV-V, TV-H
- Triggering source: CH1, CH2, LINE, EXT
- Sensitivity & Frequency: Auto : 20Hz - 100MHz (VERT) / Norm : 0.5div int, 0.8Vp---p EXT / 0.5div INT, 0.5vp - PEXT / TV-H : At least 1 div or 1V p-p
- Input impedance: 1MΩ
Horizontal Deflection:
- Display mode: 1, 10, X-Y
- Time Base: 0.2ms / div to 0.5s / div, 20 range
- Sweep expansion width : *10
- Accuracy: ±3%
X-Y Operation:
- X-Y phase difference : ≤ 30, DC - 50KHz
Packages Content:
- Analog Oscilloscopes
- User Manual
- Mains Power Cord
Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
Specifications
| SKU | ME.EL.OS.00051 |
|---|---|
| Product Type | Oscilloscopes |
| Model No | KM5060 |
| Bandwidth | 60 MHz |
| Polarity Selection | ± (CH2 Only) |
| Frequency | 1KH 20% |
| No. of Channels | Dual Channel |
| Voltage | 0.5v 1% |
| Input Coupling | AC, DC & Grounding |
| Rise Time | Less Than Or Equal To 17.5ns |
| Power Supply | AC 220V / 110V ± 10%, 50 / 60Hz |
| Display Mode | CH1, CH2, CH3, ADD ALT & CHOP |
| Max. Input Voltage | 40V (DC+AC peak value) when Less Than or Equal To 1KHz |
| Deflection Factor | 5mV / div - 5V / div ± 3%, (1mV / div to 1V / div ± 5% at*5), 10steps |
| CRT | 6 Inches Rectangular Screen With Internal Graticule, 8*10 Div (1 Div = 1cm) Vertical Deflection |
| Dimensions | 370 X 310 X 130 mm |
