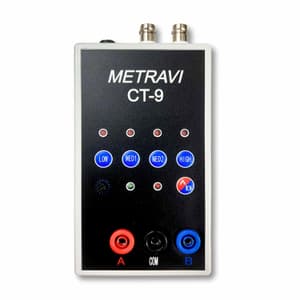

The Metravi CT-9 Handheld Dual Channel VI Curve Tracer for Oscilloscopes is a specialised device that pairs with any oscilloscope to analyse the Voltage- Current (VI) characteristics of electrical components and circuits. It adds the Component Testing function to any Analogue or Digital Oscilloscope and enables detailed diagnostics by plotting VI curves, which can reveal faults such as shorts, opens, or degraded components. Outputs signals that can be directly viewed on an oscilloscope’s XY mode, leveraging the oscilloscope’s display for high-resolution VI curve analysis.

It allows simultaneous comparison of two components or circuit paths, ideal for identifying faulty components against a known-good reference and generates low-frequency AC or DC signals, suitable for driving components to produce characteristic VI curves. Lightweight design, it uses split type of flame retardant plastic shell, with a panel made of frosted PET environmental friendly material; for convenient use in fieldwork or laboratory environments.

Features:

• Dual-Channel Capability: Allows simultaneous comparison of two components or circuit paths, ideal for identifying faulty components against a known-good reference.

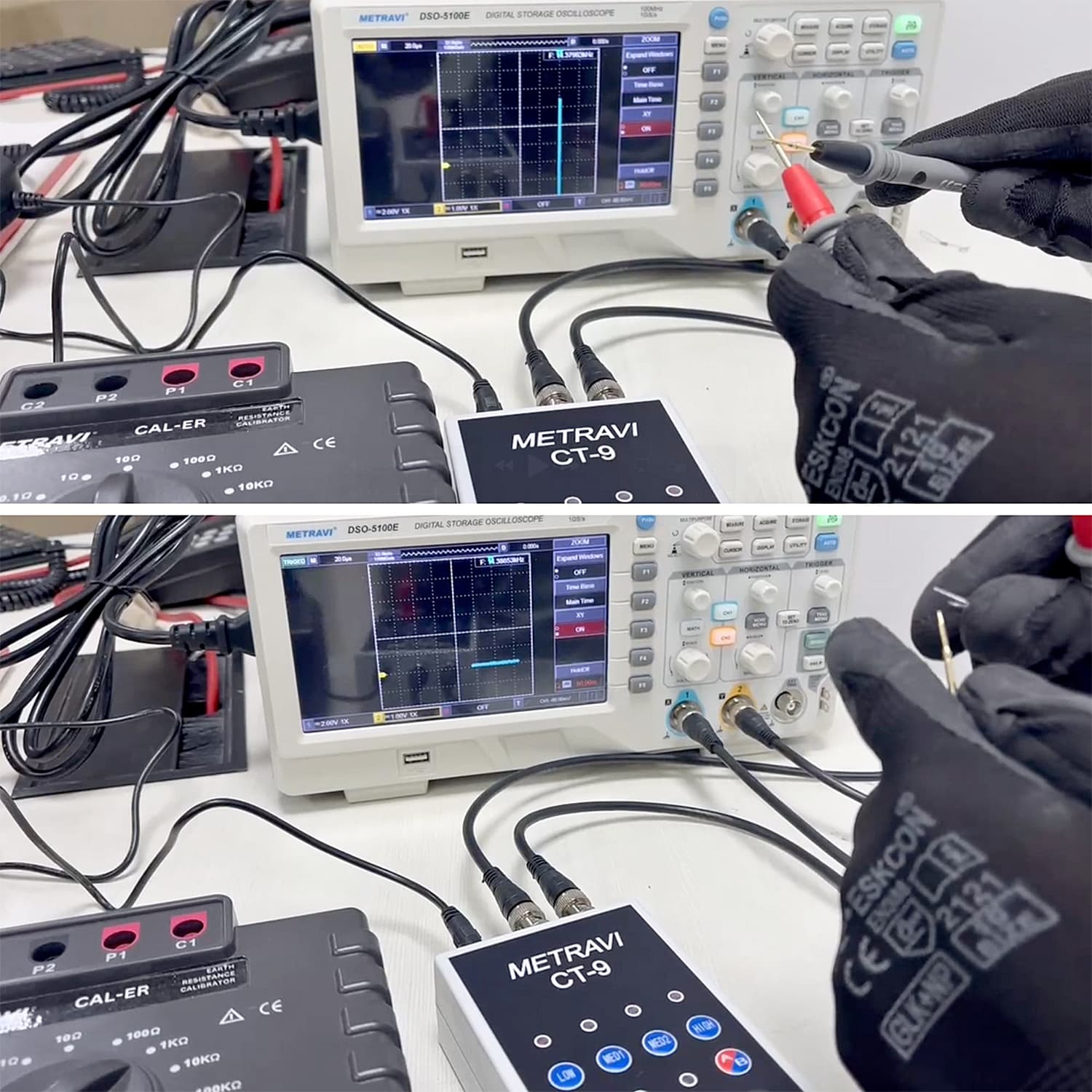

• Integration with Oscilloscopes: Outputs signals that can be directly viewed on an analogue or digital oscilloscope’s XY mode, leveraging the oscilloscope’s display for high-resolution VI curve analysis.
• Signal Generation: Generates low-frequency AC or DC signals, suitable for driving components to produce characteristic VI curves.
• Handheld and Portable: Lightweight design, it uses split type of flame retardant plastic shell, with a panel made of frosted PET environmental friendly material; for convenient use in fieldwork or laboratory environments.
• Multiple Test Ranges: Adjustable voltage and frequency ranges to accommodate a wide variety of components, including diodes, transistors, resistors, and capacitors.4-speed frequency conversion with adjustable alternating speed. Allows customisation according to specific requirements.
• Safe Testing: Designed for non-destructive testing, ensuring no harm to sensitive components.
• Durability : Built to withstand regular use in industrial or field settings.

Applications:

• Component Diagnostics
• PCB Troubleshooting
• Educational Use
• Maintenance and Repairs
• Quality Control

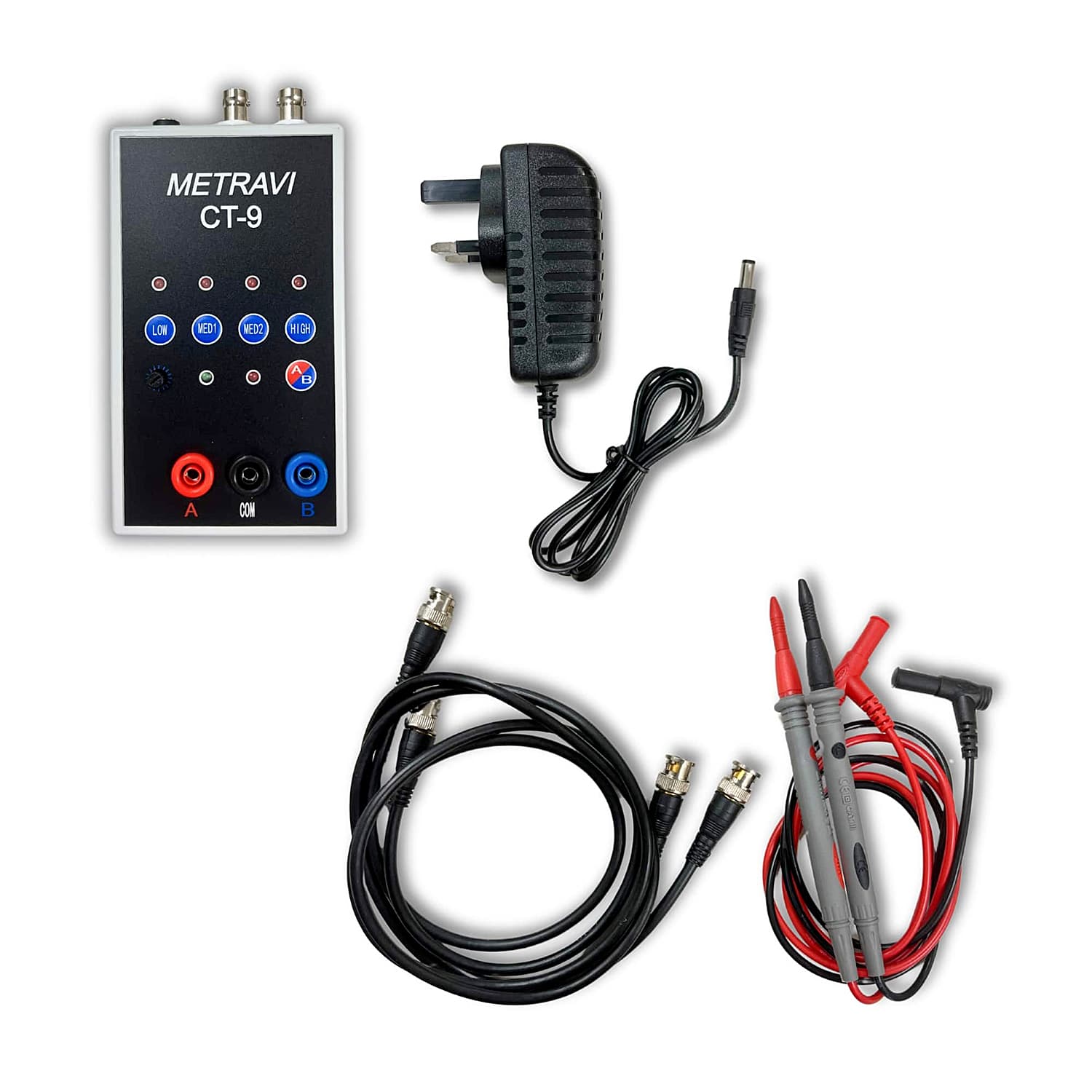

What's Included In This Package:

• Tracer
• 4mm BNC Cables x2
• Test Leads
• Power Adaptor

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.
