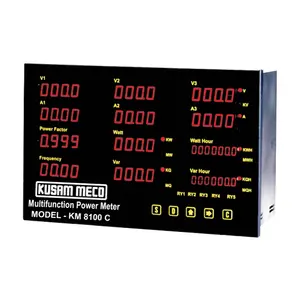

• Displays 12 parameters simultaneously: 3V, 3A, W, Var, WH, VarH, PF, Hz
• Applicable Standard: DIN IEC 688
• Suitable for: 1 Dia 2W; 1 Dia 3W; 3 Dia 3W; 3 Dia 4W systems
• 10 Years Power - Off Memory for set data
• With RS-485 Modbus Output
• Software for Load & Harmonics Analysis (Optional).
• Harmonics: Analyses Voltage & Current Harmonics up to 31 Harmonics / Displays Voltage & Current Harmonics Up to 15 Harmonics
• User-friendly programming
• Dielectric Strength: AC 2.8KV / Min, Input / Power / Case, DIN IEC 688
• Impulse: 6 KV 1.2 x 50 µS, ANSI C37.90a/ 1983; DIN IEC 1000.4 - 5, 4 - 4.

Technical Data:

Input

Input Voltage Range	Voltage: 55 ~ 300 V AC, or 300 ~ 600 V AC, 45 ~ 65 Hz P.T. Ratio programmable upto 9999 / KV
Input Voltage Overrange	Voltage: 200% Continuous, 300% of rating for 10 Sec.
Input Frequency	45Hz ~ 70Hz
Input Current Range	Current: 110 % for rating. 0 - 1A or 0 - 5A, C.T. Ratio Programmable up to 9999 / 5 A
Input Current Over Range	Current: 400% Continuous, 2000% of the rating for 10sec
Input Burden	Voltage 0.25 VA / Unit, Current 0.25 VA / Unit, at 50 / 60Hz



Output

DC Current	0 ~ 20mA DC
Load resistance drive	output drive 10V DC maximum
DC Voltage	0 -10 V DC
Load resistance drive	Output drive 5mA maximum
Output Protection	No Damage even if the output is open or short-circuit
Output Response Time	< 1 Sec
Digital Output Load	RS485 Output, Isolate Type with
MODBUS RTU mode	4800, 9600, 19200 Baud Rate, User Selectable



Accuracy

V, A, W	± 0.2 % Fs + 2 Counts at 23° C ± 3°C
Var, WH, VarH, PF	± 0.4 % rdg + 2 Count
Hz	± 0.02 % Fs + 1C at 23°C ± 3°C., THD = ± 2%



Display Range

V, A, W, Var, PF, Hz, 0.56” Super RED LED (4 Digits = 0 ~ 9999 Counts)

PT, CT User Selectable

WH; VarH, 0.36” Super RED LED (7 Digits = 0 ~ 999999 Counts)
