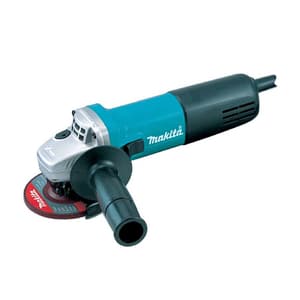

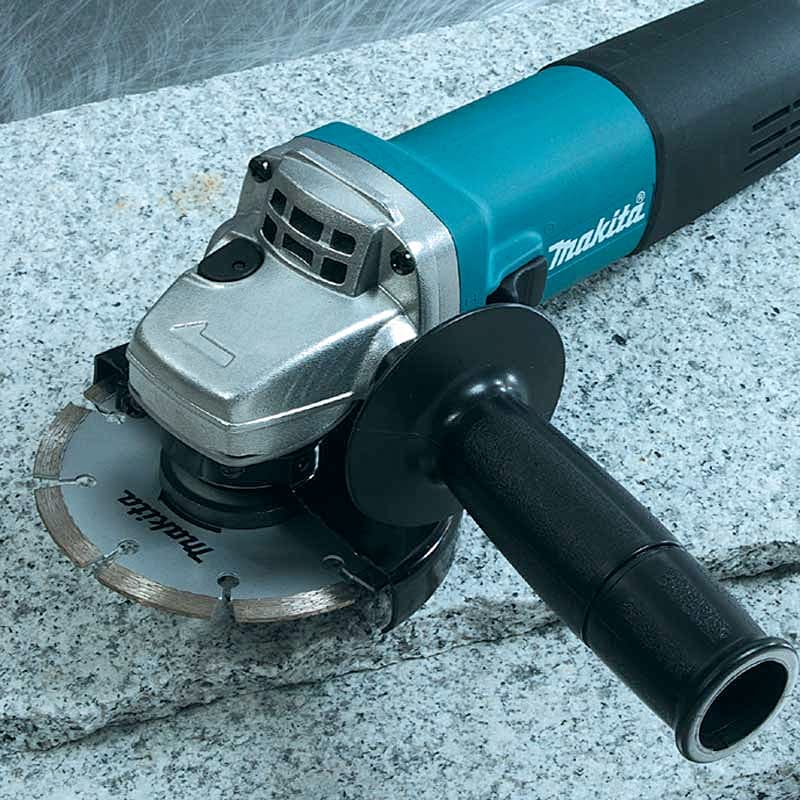

Makita 100 mm / 4 inch, 840W Angle Grinder (Slide Switch), 9556HN

Shop all Makita

SKU: PO.GR.AN.00337

Model: 9556HN

Roll over image to zoom zoom_in
  1. Makita 100 mm / 4 inch, 840W Angle Grinder (Slide Switch), 9556HN
  2. Makita 100 mm / 4 inch, 840W Angle Grinder (Slide Switch), 9556HN

  • Weight: 2 Kg
  • Product Type: Angle Grinder
  • Wheel Dia: 100 mm
  • Size (Inches): 4 inch
  • No Load Speed: 0 - 11000 rpm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

5656.92 (Incl. of all taxes)

4794+ ₹862.92 GST (18%)

MRP ₹7990

SAVE 40%



7 Business Days

1 Set

84672900

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • Reliable machined gears provide twice or more longer service life
  • Powerful 840 W motor delivers 11,000 RPM for high output power
  • Compact design with small diameter barrel and lightweight for added comfort
  • Protective zig-zag varnish seals the armature from dust and debris for longer tool life
  • Thicker coil wires are wound more closely to reduce heat and energy loss
  • AC/DC switch for use with alternative power source (country-specific)
  • Labyrinth construction seals and protects the drive gear and bearings from contamination for longer tool life
  • Dust-proof ball bearing on spindle for durability
  • O rings for protection from grease-leakage
  • Spiral bevel gears for smoother rotations and a more efficient transfer of energy
  • Slide switch with lock-on for continuous use
  • Switch lever conveniently located for one hand operation
  • Side grip can be positioned on both sides for operator convenience
  • Wheel cover protects operator from accidental scattering of broken wheel or workpiece with minimal wheel cover movement
  • Push button spindle lock for operator convenience
  • Gear housing can be rotated to suit most cutting and grinding applications
  • Use of a woodruff key to assemble gear onto spindle allows for easier repairing of gear section
  • Can be connected to dust extraction system with optional dust collecting wheel guard
  • Great for welders, fabricators, masons, stone/tile, automotive and many other metal applications.
    Double insulated


Standard Accessories:

  • Depressed Center Wheel,
  • Side Grip,
  • Wheel Cover,
  • Lock Nut Wrench.

Double Insulation
Dust Collection


Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUPO.GR.AN.00337
Product TypeAngle Grinder
Model No9556HN
Wheel Dia 100 mm
Size (Inches) 4 inch
No Load Speed 0 - 11000 rpm
Power Source Corded
Carbon Brush 325
Continuous Rating Input 840W
Hole Diameter 16 mm (5/8")
Cup Brush Diameter 75 mm (3")
Disc Paper Diameter 100 mm (4")
Rubber Pad Diameter 76 mm (3")
Thread M10 x 1.5 mm
Abrasive Grinding Wheel Diameter 100 mm (4")
Abrasive Cut-off Wheel Diameter 100 mm (4")
Max Abrasive Wheel Thickness 6.4 mm (1/4")
Diamond Wheel Diameter 105 mm (4")
Power Supply Cord 2.5 m (8.2 ft)
Dimensions (L x W x H) 271 x 118 x 97 mm (10-5/8 x 4-5/8 x 3-13/16")
