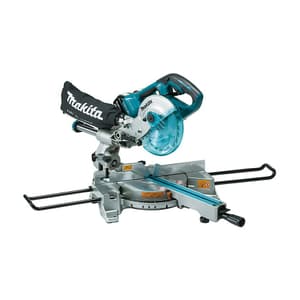

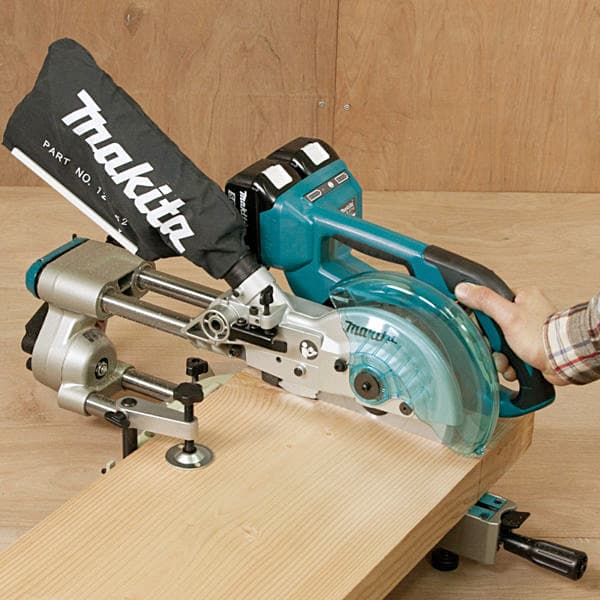

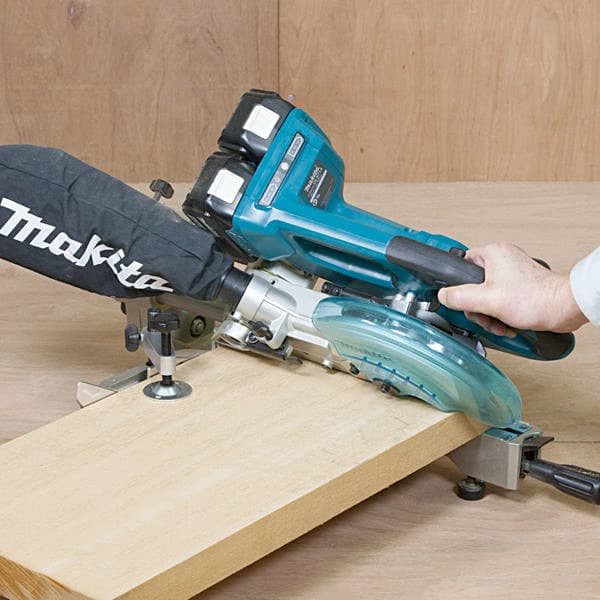

Makita 18V X2 (36V) LXT BL 190 mm Cordless Dual Slide Compound Miter Saw (Bare Tool), DLS714Z

Shop all Makita

SKU: PO.CU.MI.00029

Model: DLS714Z

Roll over image to zoom zoom_in
  1. Makita 18V X2 (36V) LXT BL 190 mm Cordless Dual Slide Compound Miter Saw (Bare Tool), DLS714Z
  2. Makita 18V X2 (36V) LXT BL 190 mm Cordless Dual Slide Compound Miter Saw (Bare Tool), DLS714Z
  3. Makita 18V X2 (36V) LXT BL 190 mm Cordless Dual Slide Compound Miter Saw (Bare Tool), DLS714Z
Video

  • Weight: 12.6 Kg
  • Product Type: Mitre Saw
  • Wheel Dia: 190 mm
  • Speed (RPM): 5700 rpm
See all product information chevron_right
  • receiptGST Invoice
  • headphonesCustomer Service
  • lockSecure Payments
  • policyReturns & Warranty
  • home_pinOrder Tracking
  • paymentsBuy in Installments

56640 (Incl. of all taxes)

48000+ ₹8640 GST (18%)

MRP ₹80000

SAVE 40%



7 Business Days

1 Pcs

84672200

picture_as_pdfDownload Product Leafletkeyboard_double_arrow_right
picture_as_pdfBrand Authorization Certificatekeyboard_double_arrow_right
picture_as_pdfDownload Bosch Cataloguekeyboard_double_arrow_right

Highlights

  • (Batteries & Charger are not Included)
  • 18V solution for corded power demands
  • Two 18V LXT Li-Ion batteries deliver the power and performance for corded demands without leaving the 18V LXT platform
  • High power delivered by a 36V (18Vx2) DC Brushless motor enables you to cut as fast as if you were using a corded slide compound miter saw
  • Large cutting capacity; Crosscuts up to 52 x 300 mm (2-1/16″ x 11-3/4″) at 90°
  • Miters 0-47 ° left and 0-57 ° right; bevels 0-45 ° left and 0-5 ° right
  • ADT (Automatic Torque Drive Technology) adjusts speed and torque during operation for optimum performance
  • 4-Steel Rail Sliding System increases rigidity to produce superior cuts
  • Powerful BL Motor delivers 5,700 RPM for fast-cutting
  • Large dimensional lumber cutting capacity: 52 x 300 mm (2″ x 12″) at 90° and 52 x 212 mm (2″ x 8″) at 45°
  • Positive miter stops at: 0°, 15°, 22.5°, 30° and 45° left and right
  • Linear ball bearing system engineered to deliver “dead-on” accurate cuts
  • The large aluminum base supports large stock for efficient cutting
  • Holders are provided on both sides of the tool to hold long workpieces horizontally
  • Electric brake for maximum productivity
  • LED indicator panel for 2 indications (1) Battery fuel gauge (2) Indication of Automatic speed control
  • Soft elastomer carrying grip; provides sure but comfortable grip for easy job site portability
  • Dust bag for a cleaner work environment
  • Battery protection circuit protects against overloading, over-discharging and over-heating.


What's Included in this Package:

Miter Saw
TCT Saw Blade
Dust Bag
Holder Set
Vertical Vise
Hex Wrench
Triangular Rule

Lithium-ion Extreme Technology
18V x 2 Battery
Brushless Motor
Automatic Torque Drive Technology
Brake
Soft-Start
Bevel Cutting 45 LR
Dust Collection

Please Note that Product may differ eg. colour, size from the product Image displayed on website. Kindly check the specifications provided to make better purchase decision.

Specifications

SKUPO.CU.MI.00029
Product TypeMitre Saw
Model NoDLS714Z
Wheel Dia 190 mm
Wheel Diameter (Inch) 7-1/2 inch
Speed (RPM) 5700 rpm
Power Source Cordless
Miter Angle 47° L / 57° R
Bevel Angle 45° L / 5° R
Sound Pressure Level 88 dB(A)
Sound Power Level 97 dB(A)
Vibration Level 2.5 m/s² or less
Vibration K Factor 1.5 m/s²
Noise K Factor 3 dB(A)
Dimensions (HxLxT) 655x430x445 mm (25-3/4"x17"x17-1/2")
Max Cutting Capacity (90°) 52 x 300 mm (2-1/16"x 11-3/4")
Max Cutting Capacity (at 45° left) 40×300 mm (1-9/16"x11-3/4")
Max Cutting Capacity ( at 5° right) 40×300 mm (1-9/16"x11-3/4")
