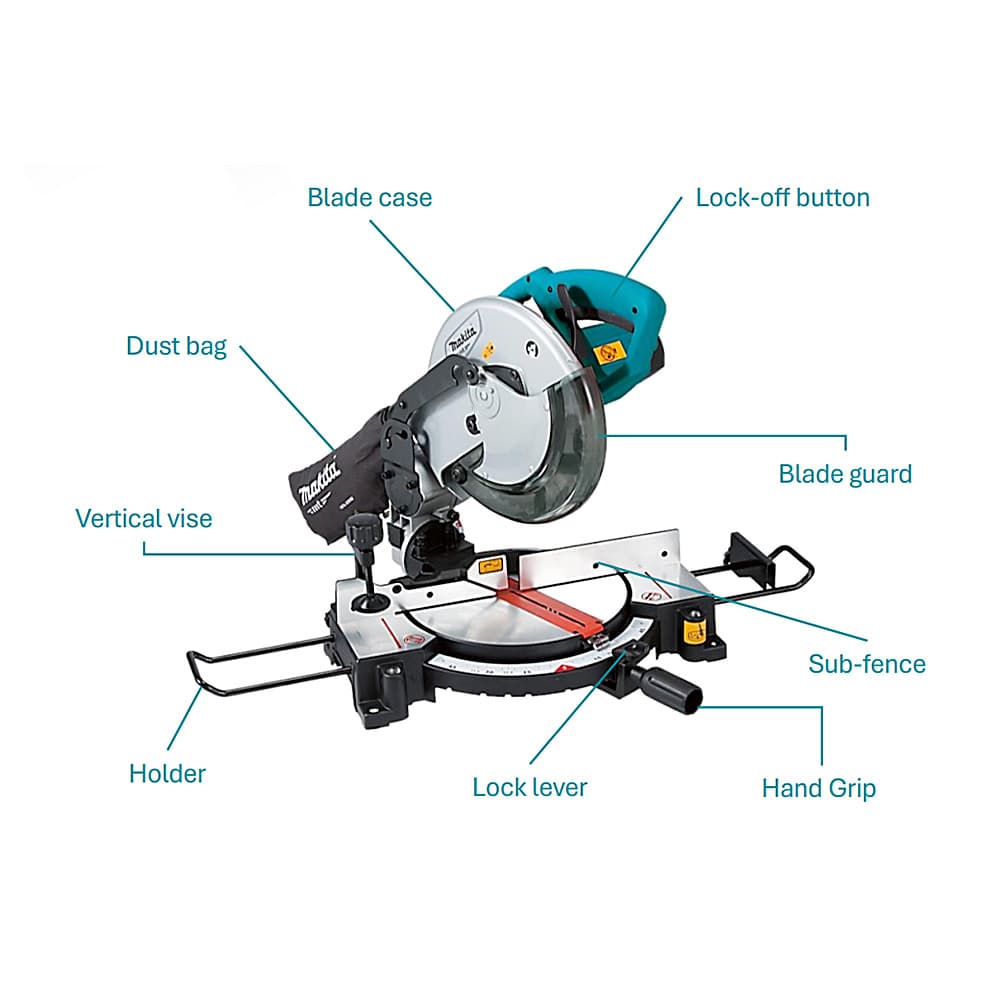

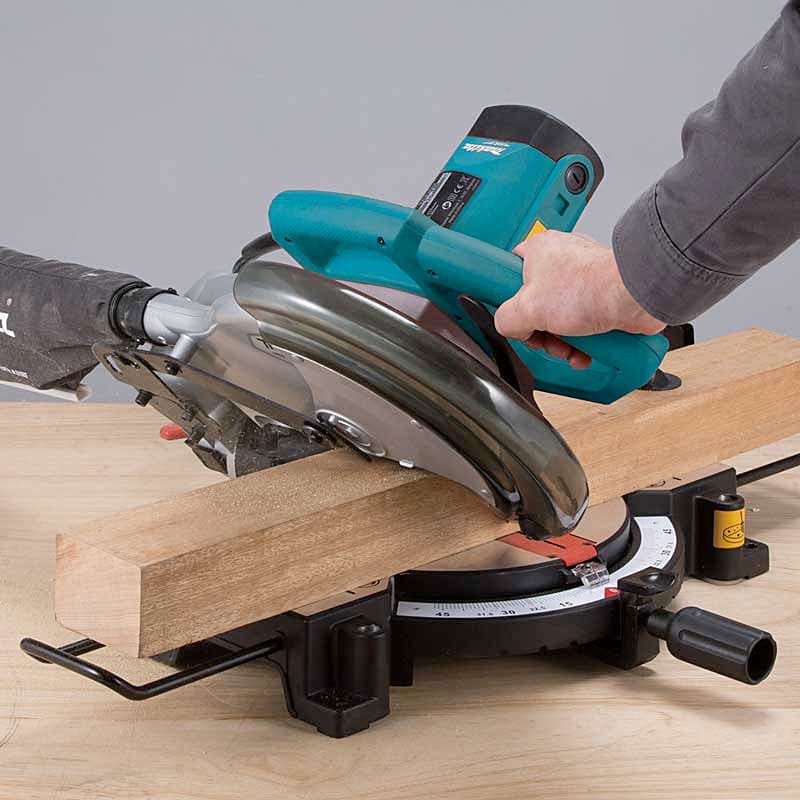

Makita M2300B 255 mm (10") 1,500 W Compound Miter Saw and this tool is intended for accurate straight and miter cutting in wood. With appropriate saw blades, aluminium can also be sawed. Makita M2300B is 255mm (10") Compound Miter Saw and has been developed as Makita-mt-series based on MT230.

Makita’s 10” Compound Miter Saw M2300B is combines power, performance, and ease of use for most common miter cuts including a range of applications including woodworking, cabinetry, deck building, framing, and more.

• Precise and durable / Blue housing / Electric Brake.
• High performance and durability at less expense.
• Miters 0°- 45° left and right, with positive stops at 0°, 15°, 22.5°, 31.6° and 45° (left and right)
• Dust bag for a cleaner work environment.
• Connects to Makita vacuum cleaner for a cleaner work area.
• Electric brake for maximum productivity and increased operator safety.
• See-through blade guard system for greater visibility of the line of cut.
• Includes holders (extension wings) for supporting long work pieces.
• Added tip-resistance with a stay plate on the rear of the base.
• No lock button or similar for locking the switch on is provided on the tool, but a hole is provided for insertion of a padlock to lock the tool off.
• Externally accessible brushes for easy serviceability.

Features:

• New Model: Powerful 1,500W motor delivers 4,200 RPM and achieved the performance equal or superior to competitors' models.
• Adjusting the cutting angle: This tool is carefully adjusted and aligned at the factory, but rough handling may have affected the alignment. If your tool is not aligned properly.
• Vertical Vise: The vertical vise can be installed in two positions on either the left or right side of the guide fence. Insert the vise rod into the hole in the guide fence and tighten the screw to secure the vise rod.
• Electric brake: Electric brake for maximum productivity and increased operator safety.
• Ergonomic design: Easy-to-hold barrel grip provides less hand fatigue and more control of the machine due to grip circumference.

Advantages:

• Power: Powerful 1,650W brush motor used even for heavy duty applications.
• Rigidity: Rigid fixed arm & solid turn base for accurate straight & 0 - 45° miter angle cuttings.
• Safety: The electric brake will activate when tool is switched off, to avoid any accidental touch.
• Convenience: Dust collecting bag provided to collect the wood dust & any alu. Chips for clean working environment.
• Miter angle setting: With positive stops at 9 settings : 0 (90) degrees plus 15, 22.5, 31.6, 45 degrees left and right. Externally accessible brushes for greater serviceability

Ideal For:

• Wood Interior contractors,
• Aluminum fabricators,
• UPVC Contractors.

Standard Accessories:

• TCT saw blade,
• Dust bag,
• Triangular rule,
• Vertical vise,
• Vise assembly,
• Holder,
• Set plate

Cutting Capacities (Height x Width):

Bevel Angle (Miter Angle)	0 Degree	45 Degrees Left
0 degree (90 degrees)	75 x 130 mm (2-15/16 x 5-1/8 inch)	48 x 120 mm (1-7/8 x 4-3/4 inch)
45 degrees left and right	75 x 90 mm (2-15/16 x 3-9/16 inch)	48 x 90 mm (1-7/8 x 3-9/16 inch)

	Bevel-Cutting
	Double Insulation
	Brake
	Dust Collection
