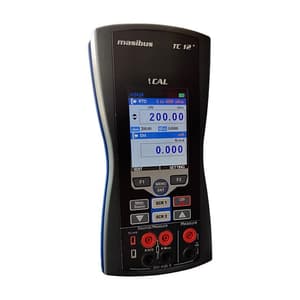

tCAL model TC12+ is portable Calibrator, multifunction Calibrator and high accuracy Temperature Calibrator. It is compact, rugged and easy to use hand held calibrator with graphical user interface for precise measuring and sourcing of electrical and physical parameters.Masibus TC12+ Process Calibrator is designed to provide the best accuracy in all modes of operation. TC12+ has Source and Measurement capability with independent parameter and range selection for Source and Measure. TC12+ has mA/ V/ mV/ mA (2W)/ Switch-test / RTD/ TC/ measurement capability and also has Resistance/ RTD/ TC/ source capability. There is an isolation between measure and source/ measure sections.

TC12+ Temperature Calibrator has easy to operate short cut keys SCR1 and SCR2 for input selection for measure and source/measure respectively. Automatic step/ ramp output with Auto/ Man selection, data logging, Max/ Min/ Average values, scaling to engineering units and filter settings enhances the use of Temperature Calibrator. It has been designed to give maximum Battery life on full charge, the backlight is adjustable for power saving and the display can be programmed to automatically enable the glance screen when not in use.

TC12+ comes with a Mini USB connector for charging, logged data retrieval and firmware upgrade. Standard accessories provided are patch cables, charger, USB cable, instruction manual, logged data retrieval software CD and calibration certificate, all in an attractive carrying case. It also used as a Multifunction Thermocouple Calibrator, Thermocouple Calibrator, Thermocouple simulator, RTD Calibrator, RTD simulator.

Features:

• Compact, handheld, user friendly menu
• Easy to read color graphical TFT LCD display
• Rechargeable lithium ion battery with enhanced power control for prolonged battery life
• Measure: mA/ V/ mV/ mA (24V)/ Switch-test / RTD/ TC
• Source: Resistance/ RTD/ TC
• 24 VDC Loop power supply to power transmitters and loops
• Step/Ramp functions with auto/ man selection
• Universal Serial Bus (USB) communication port for charging, data retrieve and firmware upgrade
• Data logging to measure long time drift
• Other Features: Max/ Min/ Average, filter settings, tare facility, adjustable backlight, alarm annunciation (on display and buzzer), glance screen mode
• Continuity test
• Pulsed RTD transmitter compatible
• HART loop resistor

Applications:

• Calibrating and checking temperature indicator/ controllers, recorders, temperature transmitters, signal conditioners, etc.
• Laboratory and site calibration purpose
• Measure and simulate for thermocouple
• Calibration of Transmitters and Transducers
• Drift test of Transmitters and Transducers

Industries:

• Calibration Lab
• Process plant
• Dairy plant
• Sensor manufacturer (TC/RTD)
• Mining and Materials industries
• Engineering laboratories
• Electronics Industries

What's Included In This Package:

• Temperature Calibrator
• Calibration Certificate
• 2 Sets of 2mm to 2mm banana cable
• 2 Sets of 2mm Crocodile cable
• 1 Test lead Cu-Cu (Miniature TC Plug Cu type to 2mm test lead)
• USB A Male to USB mini B Male cable for PC communication and charging
• 5 VDC@1A Charging Adaptor
• Carrying Bag
• Data Logging Software CD - mCAL

Technical Data:

Measurement & Simulation Range
Parameters	Range	Resolution	Accuracy
Resistance (Ohms)	0 to 400 Ω	0.01Ω	4 Wire Measurement ±0.02% of reading ±0.01? Simulation: ±0.02% of reading ± 0.02Ω
	400 to 4000Ω°	0.1Ω	4 Wire Measurement: ±0.02% of reading ±0.1? Simulation: ±0.02% of reading ± 0.15Ω
Pt10 to Pt1000	-200 to 200 °C	Pt10 to Pt400: 0.01°C Pt500, Pt1000: 0.1°C	4 wire Measurement: ±0.15°C, Simulation*: ±0.15 °C
	200 to 600 °C		4 wire Measurement: ±0.2 °C, Simulation*: ±0.25 °C
	600 to 850 °C		4 wire Measurement: ±0.3 °C, Simulation*: ±0.35 °C
Ni100	-60 to 180 °C	0.01 °C	4 wire Measurement: ±0.1 °C, Simulation*: ±0.15 °C
Ni120	-80 to 260 °C	0.01 °C
Cu10 to Cu100	-200 to 260 °C	0.01 °C	4 wire Measurement: ±0.2°C, Simulation*: ±0.8°C
Note: For 4 wire Resistance measurements 0.01Ω resolution is available in the 0 to 1600 ohm range Accuracy is valid with an excitation current >0.2mA (0...400 ohm), >0.1mA (400...4000 ohm) Read accuracy is based on 4-wire input. For 3-wire RTD measurements, assuming all three RTD leads are matched, add 1.0°C (Pt10 and Cu10), 0.6°C (Pt50 and Cu50), and 0.4°C (other RTD types) to the specifications
Electrical Measurement Parameters & Accuracy
Parameter	Range	Resolution	Accuracy
V	0 to 30.00 VDC	0.001 V	±0.02% of reading ± 2 count
mA	0 to 24.000 mA	0.001 mA	±0.02% of reading ± 2 count
Thermocouple/mV Measurement/Simulation Resolution & Accuracy@20-30°C
TC Type	Range	Resolution	Accuracy
E	-200.0 to 1000.0°C	0.1°C	0.3°C±4uV
J	-200.0 to 1200.0°C	0.1°C	0.3°C± 4uV
K	200.0 to 1372.0°C	0.1°C	0.3°C± 4uV
T	-200.0 to 400.0°C	0.1°C	0.3°C± 4uV
B	450.0 to 1800.0°C	0.1°C	0.5°C± 4uV
R	0.0 to 1750.0 °C	0.1°C	0.5°C± 4uV
S	0 to 1750.0 °C	0.1°C	0.5°C± 4uV
N	-200.0 to 1300.0°C	0.1°C	0.3°C± 4uV
mV	-10.000 to 80.000 mV	0.001 mV	±0.02% of reading ± 4uV
	-10.00 to 250.00 mV	0.01mV	±0.02% of reading ± 0.02mV
Note: Temperature standard ITS-90 Degree equivalent to 4uV against respective readings to be added to above mentioned accuracy for TC input.
Compatible RTD Types
Pt10 (385)	Pt400 (385)	Ni100 (672)	Cu10 (427)
Pt50 (385)	Pt500 (385)	Ni100 (618)	Cu50 (427)
Pt100 (385)	Pt1000 (385)	Ni120 (672)	Cu100 (427)
Pt200 (385)	Pt100 (3926)
Long-term drift for 1 year
V/mA measurement mode		±0.02% of reading
E, J, K, T, N		±0.3°C of reading
B, R, S		±0.5°C of reading
mV		±0.02% of reading
Resistance measurement and simulation		±0.02% of reading
-200 to 600 measurement and simulation mode (Pt10 to Pt100)		±0.2°C
600 to 800 measurement and simulation (Pt10 to Pt100)		±0.3°C
measurement and simulation mode (Ni100 and Ni120)		±0.15°C
measurement mode (Cu10 and Ni100)		±0.2°C
simulation mode (Cu10 and Ni100)		±0.8°C
Display & Keys
Display		“2.4” TFT LCD, Color Graphical 42.72 mm x 60.26 mm, 240x320 pixels, White LED Backlight
Keys		9 Membrane Keys
Special Features
Loop power output		24V DC, ±10% (24mA maximum)
HART mA Loop Resistor		250 ? ± 20%
Special Function		Step/Ramp functions: Automatic/Manual. 2 √x, x : for mA/V measure
Continuity Test		Audible sounds when resistance measure value crosses the specified threshold. (selectable up to 100?)
Automatic wire detection (RTD/Resistance)		2-wire, 3-wire or 4-wire
Switch Test		Potential free contacts Trigger level : 24V, 24mA (2V) Voltage level detection Trigger level : 0 to 30V in 1V steps
Power Supply
Battery type		Rechargeable Li-ion battery pack, 2300mAh 3.7V
Charging time		<5 hours max
Charger Supply		100-240 VAC, 50/60 Hz; Output 5V DC@1A
Battery Life on full charge		Continuous operation (measure or source) >17 hours
		Continuous operation (12mA (24V) measure) >9 hours
Battery Status		Indication Battery symbol displayed with % power remaining
Physical
Dimensions		161.7 mm (L) x 82.1 mm (W) x 39.5 mm (H)
Housing Material		ABS Plastic
Electrical Terminals: Measure: V/mA/mA(24V)/switch		Two nos., 2 mm safety sockets
RTD Terminals: Measure /Source: Resistance/ RTD		Four nos., 2 mm safety sockets
TC Terminals: TC/mV (measure/Source)		Thermocouple minijack socket (cu type)
Protection		IP20
Environmental
Operating temperature		0 to 55 °C
Operating temperature while charging batteries		0 to 45 °C
Storage temperature		-20 to 60 °C
Relative Humidity		30% to 90% RH non-condensing
Warm-up time		5 Minutes
