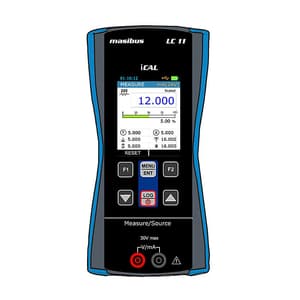

iCAL model LC 11 is the Precision Current & Voltage Calibrator for sourcing or measuring and simulating Loop current, mV and V. It is compact, rugged and easy to use hand held Calibrator with graphical user interface. LC 11 has either Measure only or Source only feature. Masibus LC 11 Loop Calibrator is designed to provide base accuracy of 0.02% of Reading in all modes of operation. 2W simulateor transmitter simulator, mA simulator,voltage simulator and Read/ Power are unique features for Loop testing and calibration.

It has been designed to give maximum Battery life on full charge, the backlight is adjustable for power saving and the display can be programmed to automatically switch off when not in use Automatic Step/ Ramp output with Auto/ Man selection, data logging, Max/ Min/ Average values, scaling to Engineering units and filter settings enhances the use of LC 11 and makes it multifunctional.

LC 11 comes with a Mini USB connector for charging, logged data retrieval and firmware upgrade, standard accessories provided patch cables, charger, USB cable, instruction manual, logged data retrieval software CD and calibration certificate, all in a attractive carrying case. It is also used as a Current Loop Calibrator, Voltage Calibrator, Digital loop Calibrator, Current & Voltage Calibrator, Current Source, Voltage Source, Current Measure, Voltage Measure.

Features:

• Easy to read Color Graphical TFT LCD display
• Rechargeable lithium ion battery with enhanced power control for prolonged battery life
• Measure or Source: mA, mV and V readings
• 24 VDC Loop power Supply to power transmitters and loops
• 2W simulate and Read/ Power mode for in-situ Loop checking and calibration
• Step/ Ramp functions with Auto/ Man selection
• Universal Serial Bus (USB) communication port for charging, data retrieve and firmware upgrade
• Data Logging to measure long time drift
• Other Features: Max/Min/Average, filter settings, tare facility, adjustable backlight, alarm annunciation (on display and buzzer), automatic Display off.

Applications:

• Loop Check and calibration
• Calibration of Transmitters and Transducers
• Switch Test and calibration
• Drift test of Transmitters and Transducers
• Calibration service provider
• Test and maintenance

Industries:

• Calibration Lab
• Process plant
• Dairy plant
• Cement Industries
• Chemical Industries
• Paper Industries
• Engineering laboratories
• Electronics Industries

What's Included In This Package:

• Calibration Certificate
• User Guide
• 1 Set of 2mm to 2mm banana cable
• 1 Set of 2mm Crocodile cable
• Carrying Bag
• Data Logging Software CD-mCAL
• USB A Male to USB mini B Male cable for PC communication and charging 5 VDC Charging Adapter

Technical Specifications:

Measurement Range
Parameter	Range	Resolution	Accuracy
mV	0-250.00 mV	0.01 mV	+0.02% of reading + 2 counts
V	0-30.000 VDC	0.001 V	+0.02% of reading + 2 counts
mA	0-24.000 mA	0.001 mA	+0.02% of reading + 2 counts
Source Range
Parameter	Range	Resolution	Accuracy
mV	0-250.00 mV	0.01 mV	+0.02% of reading + 2 counts
V	0-12.000 VDC	0.001 V	+0.02% of reading + 2 counts
mA	0-24.000 mA	0.001 mA	+0.02% of reading + 2 counts
Specifications
Display	2.4” TFT LCD, 262K Color, Graphical, 42.72 mm x 60.26 mm, 240x320 pixels, White LED Backlight
Keys	6 Membrane Keys
Loop power output	24V DC, +10% (24mA maximum)
HART mA Loop Resistor	250 Ω + 20%
Special Function	Step/Ramp functions: Automatic/Manual, x, x2: for measure & source
Battery Type	Rechargeable Li-ion battery pack, 2300mAh 3.7V
Charging Time	<5 hours max
Charger supply	100-240 VAC, 50/60 Hz; Output 5V DC@1A
Battery Life on full charge	>20 hours max for mA, mV, V measurement with minimum backlight brightness. > 10 hours max for 12mA generation with minimum backlight brightness
Battery Status Indication	Battery symbol displayed with % power remaining
